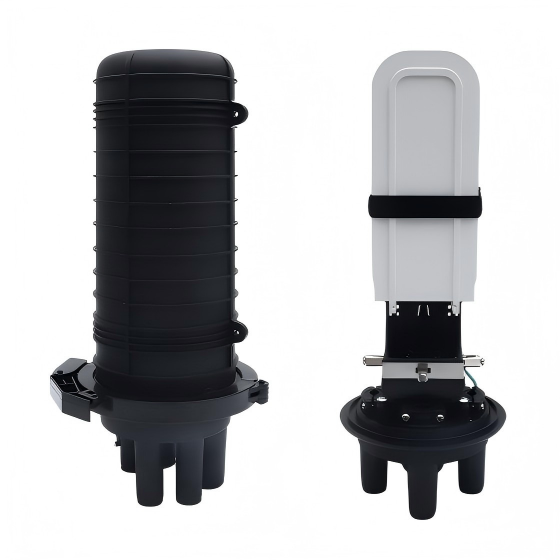

Dome Type Optical Splitting and Splicing Closure SSC
LG-SSC-D48
Product Overview
The optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. It is applicable to situations such as overhead, direct burial, man-well of pipeline, embedded situation etc
Product Information
Product Details
Specification
Splice tray capacity | 12 cores @ 24/48 cores 24 cores @96/144 cores |
Port | 1*inlet + 3*outlet, or 2*inlet+2*outlet |
SSC housing material | PC+ABS, IP68 |
SSC dimension | 300mm*190mm @ 24/48 cores 420mm*205mm @96/144 cores |
Standard accessories | Installation kits |
Ordering Information
Model | Description |
LG-SSC-D24 | 24 cores optical splice closure with splice tray |
LG-SSC-D48 | 48 cores optical splice closure with splice tray |
LG-SSC-D96 | 96 cores optical splice closure with splice tray |
LG-SSC-D144 | 144 cores optical splice closure with splice tray |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SSC-D48 | Dome Type Optical Splitting and Splicing Closure SSC | In Stock |
