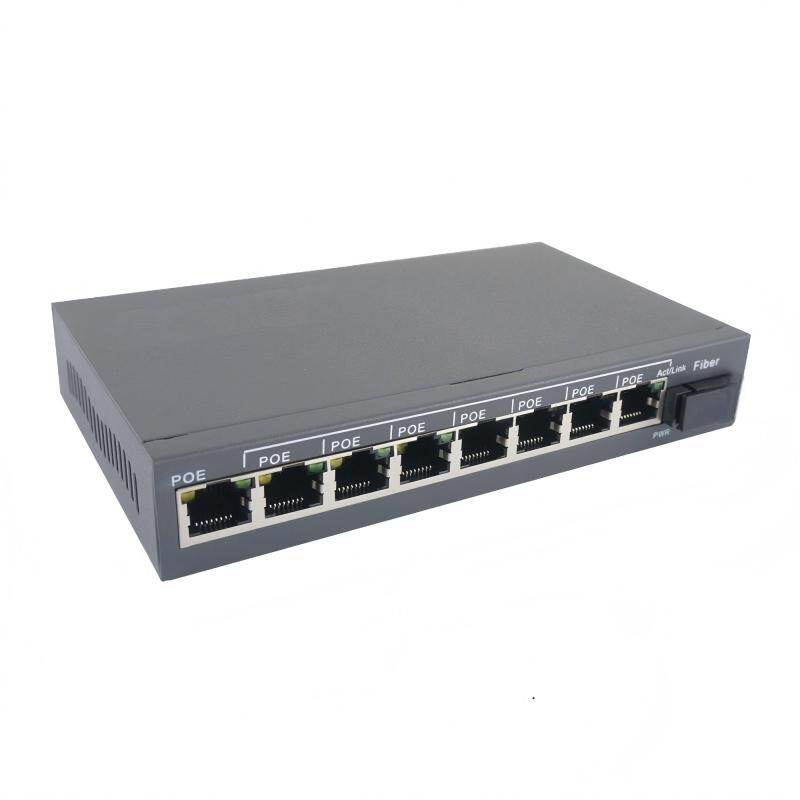

10/100/1000Mbps 8-Port POE switch (8*POE+1*Fiber)
LG-PSW-GE-8P1F
Product Overview
10/100/1000Mbps POE switch, 8* POE af/at Ports, one fiber port (dual-core fiber or WDM), distance up to 120km.
Product Information
Product Details
Specification
Optic Interface | Connector type | SC (default), FC/ST (optional) LC (by SFP module) |
Data rate | 1000Mbps, full duplex mode | |
Wavelength | 850nm, 1310nm, 1490nm, 1550nm (can be chosen by customer) | |
Fiber category | MM: 50/125um, 62.5/125um SM: 9/125um | |
Transmission distance | Up to 120km by dual-core fiber or single-core fiber | |
Ethernet Interface | Connector type | RJ45 |
Data rate | 10/100/1000Mbps Full/half duplex self-adaptive Auto-MDI/MDIX | |
Cable type | Cat5 UTP or better | |
Transmission distance | ≤100 meters | |
POE | Power | 15.4W/25.5W |
Standard | IEEE 802.3af/at | |
Power supply | DC 52V, 1.85A/2.5A | |
Environment condition | Operating temp: 0℃~+55℃ Storage temp: -20℃~+75℃ RH: 5%~95% (non-condensing) | |
Dimension | 160*95*30 mm @100Mbps POE switch 205*95*25 mm @1000Mbps POE switch | |
Protocol | IEEE802.3u (10Base-T, 100Base-TX), IEEE802.3ab (1000BaseT-T) IEEE802.3z (1000Base-FX), IEEE 802.3af /IEEE 802.3at IEEE 802.3x Flow control, IEEE 802.1q VLAN(optional) | |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-PSW-GE-8P1F | 10/100/1000Mbps 8-Port POE switch (8*POE+1*Fiber) | In Stock |
