ADSS Suspension Clamp for cable short span 100m~200m
LG-ADSS-SC02
Product Overview
Suspension Clamp with preformed rods for ADSS cables short span 100m~200m.
Product Information
Product Details
Specification
Model | LG-ADSS-SC02 (ADSS Suspension Clamp) |
Applicable cable | ADSS cable with span 100m~200m |
Applicable cable OD | 9.5mm~15mm |
Clamp material | Aluminium alloy |
Clamp RTS | 10%~20% of cable RTS |
Breaking strength | ≥30KN |

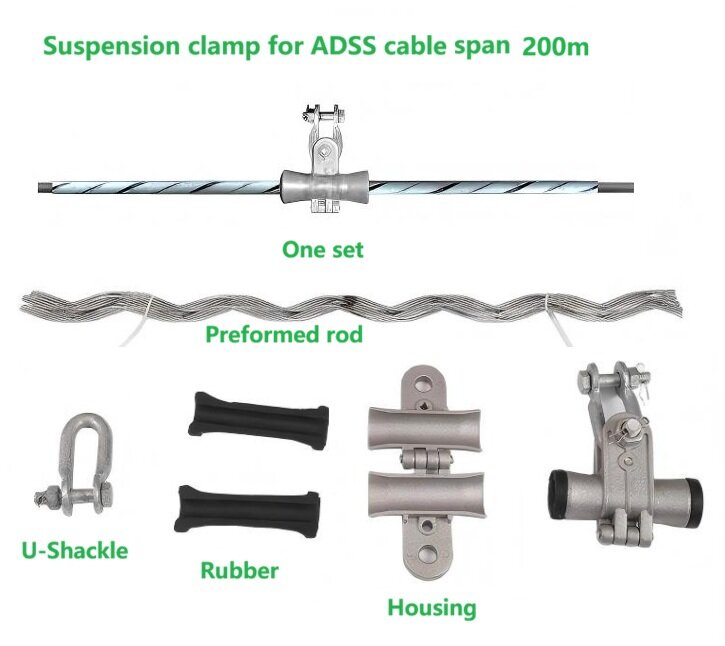

One set including | U-Shackle, Housing, Rubber, Preformed rod single layer, Bolt & nut etc |
Note:
It is best to order ADSS cables and its supporting fittings together.
If purchased separately, please provide specifications of the ADSS cable
( outer diameter, span length, MAT, RTS/UTS, etc.), as well as the working environment,
so that we can recommend suitable models based on the data for the smooth implementation of the project.
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ADSS-SC02 | ADSS Suspension Clamp for cable short span 100m~200m | In Stock |
