288F 360F Optical Distribution Frame Cabinet ODF
LG-ODF-288
Product Overview

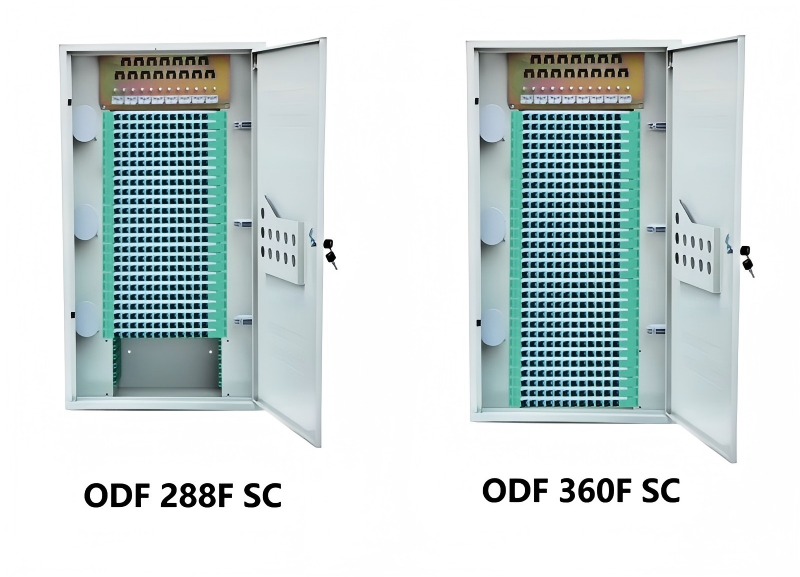

Direct insertion frame cabinet of 288F 360F ODF
Product Information
Product Details
Specification
Cabinet material | 1.2mm cold-rolled plate; Column reinforced with 1.5mm |
Dimension (L*W*H) | 55*30*100 (CM) |
Door opening method | Open the front door |
Cable entry method | Up and down |
Qty of splice tray | 24pcs @ 288F 30pcs @ 360F |
Splice tray
| Capacity: 12 cores |
Dimension: 350*180*25 mm | |
Material: ABS | |
Adapter: SC, FC, LC , ST | |
Working Temp | -40~+60℃ |
Standard accessories | Installation kits |
Optional accessories | 12 cores splice tray (empty) Fiber length: 1m, 1.5m, 2m or customized Fiber mode: SM or MM Splice sleeve: 40~60mm Adapter: SC/FC /ST/LC |
Ordering Information
Model | Description |
LG-ODF-288 | 288 Cores ODF, empty cabinet |
LG-ODF-360 | 360 Cores ODF, empty cabinet |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ODF-288 | 288F 360F Optical Distribution Frame Cabinet ODF | In Stock |
