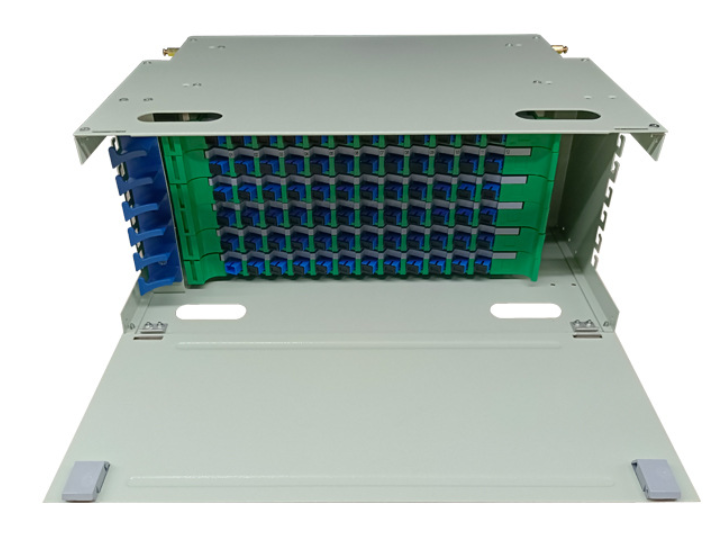

12~144 cores Fiber Optical Distribution Frame (ODF)
LG-ODF-24
Product Overview
ODF with fiber splicing tray, rack-mounted type, 19inch
Product Information
Product Details
Features
Fully modular design, fully frontal operation.
Can be installed on a 19 inch standard rack.
Suitable for ribbon and non ribbon optical cables.
Can install various adapters such as FC, SC, ST, and LC in a snap on manner.
Easy to operate and well protected.
Both fiber optic cables and pigtails have a storage space of over 2m.
Specification
Splice tray capacity | 12 cores |
Splice tray dimension | 350*180*25 mm |
Splice tray material | ABS |
Applicable adapter | SC, FC, LC , ST |
ODF housing material | Cold rolled steel |
ODF dimension | 483*320*45mm @ 12 cores 483*320*88mm @ 24 cores 483*320*130mm @ 48 cores 483*320*180mm @ 72 cores 483*320*257mm @ 96 cores 483*320*357mm @ 144 cores |
Installation type | Rack-mounted, 19inch |
Standard accessories | Installation kits |
Optional accessories | Adapters, pigtails, splice tray |
Ordering Information
LG-ODF-12 | ODF, one splice tray, 1U 19inch |
LG-ODF-24 | ODF, 2pcs splice tray, 2U 19inch |
LG-ODF-48 | ODF, 4pcs splice tray, 3U 19inch |
LG-ODF-72 | ODF, 6pcs splice tray, 4U 19inch |
LG-ODF-96 | ODF, 8pcs splice tray, 5U 19inch |
LG-ODF-144 | ODF, 12pcs splice tray, 7.6U 19inch |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ODF-24 | 12~144 cores Fiber Optical Distribution Frame (ODF) | In Stock |
