ADSS Tension Clamp for cable short span 100m
LG-ADSS-TC01
Product Overview
Tension Clamp with preformed rods for ADSS cables short span less than 100m.
Product Information
Product Details
Specification
Model | LG-ADSS-TC01 (ADSS Tension Clamp) |
Material | Aluminum-clad steel, Galvanized steel wire |
Applicable cable | ADSS cable with short span ≤100m |
Applicable cable OD | 9mm~17mm |
Clamp RTS | 10KN~20KN (customization supported) |

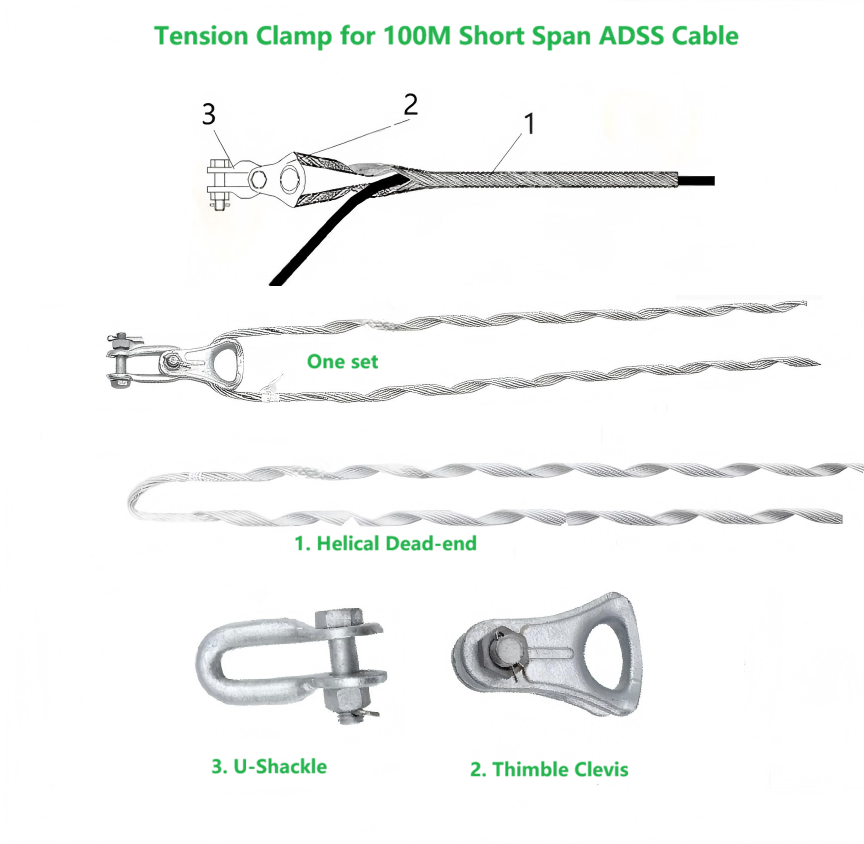

One set including | U-Shackle, Thimble Clevis, Helical Dead-end, Guy grip single layer, Bolt and nut etc |
Note:
It is best to order ADSS cables and its supporting fittings together.
If purchased separately, please provide specifications of the ADSS cable
( outer diameter, span length, MAT, RTS/UTS, etc.), as well as the working environment,
so that we can recommend suitable models based on the data for the smooth implementation of the project.
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ADSS-TC01 | ADSS Tension Clamp for cable short span 100m | In Stock |
