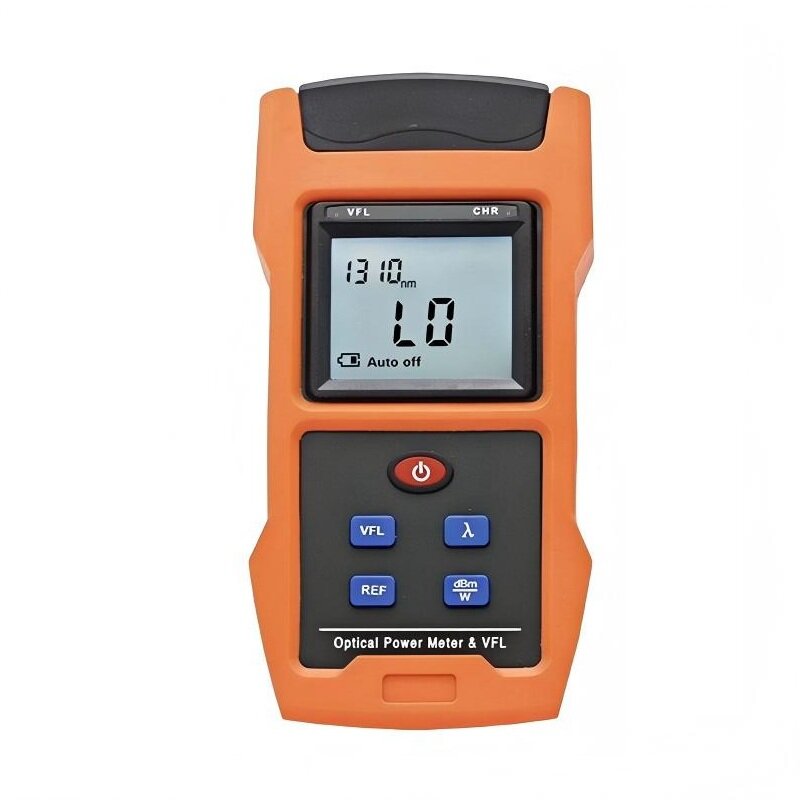

Optical Power Meter OPM with VFL
LG-OPM-VFL-102
Product Overview
Optical Power Meter support with Visual Fault Locator: OPM support -70~+10dBm or -50~+26dBm; VFL support 1mW, 10mW, 20mW or 30mW.
Product Information
Product Details
Specification
OPM Module | ||
Wavelength | 800~1700nm | |
Fiber type | SM, MM | |
Calibrated Wavelength | 850/980/1300/1310/1490/1550/1625nm | |
Measuring Range | -70 to +10dBm | -50 to +26dBm |
Detector Type | 1mm, InGaAs | |
Resolution | 0.01dBm | |
Uncertainty | ±0.25dB | |
Connector | SC/FC interchangeable | |
VFL Module | ||
Laser Type | FP-LD | |
Output Power | 1mW (default) 10mW, 20mW, 30mW (optional) | |
Wavelength | 650nm±20 | |
Output modes | CW, 2Hz | |
Connector | 2.5mm universal connector | |
Others | ||
Operating Temp | -10 to +45℃ | |
Storage Temp | -20 to +65℃ | |
Power supply | 18650 Li-ion battery | |
Auto shutdown time | 10min | |
Working time | OPM+ 10mW VFL mode: 50 hours OPM mode: 200 hours | |
Dimension | 160*75*29mm | |
Weight | 250g (include battery) | |
Ordering Information
Model | Description |
LG-OPM-VFL-101 | Optical Power Meter with Visual Fault Locator OPM: -70 to +10dBm VFL: 1mW |
LG-OPM-VFL-102 | Optical Power Meter with Visual Fault Locator OPM: -50 to +26dBm VFL: 1mW |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OPM-VFL-102 | Optical Power Meter OPM with VFL | In Stock |
