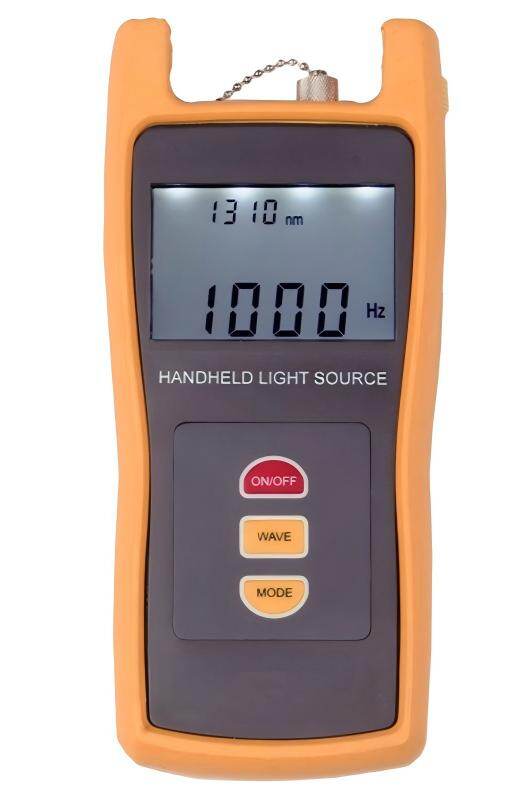

Multi Wavelength Optical Light Source
LG-OLS-Y203
Product Overview
LG-OLS-Y series light source support 1~4 wavelength SM/MM output. When used in conjunction with the model LG-OPM-Y optic power meter, it can achieve loss detection of various long-distance or short distance optical communication lines.
Product Information
Product Details
Specification
Laser Type | FP-LD, LED or others please specify |
Wavelength | 650nm, 850nm, 1300nm, 1310nm, 1490nm, 1550nm ( 1~4 wave option) |
Fiber Type | SM, MM |
Optical Connector | FC/PC |
Output Power | -7dBm for LD, -20dBm for LED |
Adjustable output power step | Output power range -5~-9 dBm: <0.5 Output power range -9~-12 dBm: <1.0 |
Output Stability(dB) | ±0.05@20℃@30min |
Modulation Frequencies | CW 2Hz@650nm CW 270Hz, 330Hz, 1KHz, 2KHz for other wave |
Power Supply | 3pcs AA 1.5V Alkaline battery; AC adapter 8.4V |
Continuous working time | 45 hours |
Operating Temperature | -10℃～+60℃ |
Storage Temperature | -25℃～+70℃ |
Dimension | 152*74*26(mm) |
Weight | 180g |
Ordering Information
Model | Description |
LG-OLS-Y201 | light source: 650nm |
LG-OLS-Y202 | light source: MM 850nm/1300nm |
LG-OLS-Y203 | light source: 1310nm/1550nm |
LG-OLS-Y204 | light source: 650nm/1310nm/1550nm |
LG-OLS-Y205 | light source: 1310nm/1490nm/1550nm |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OLS-Y203 | Multi Wavelength Optical Light Source | In Stock |
