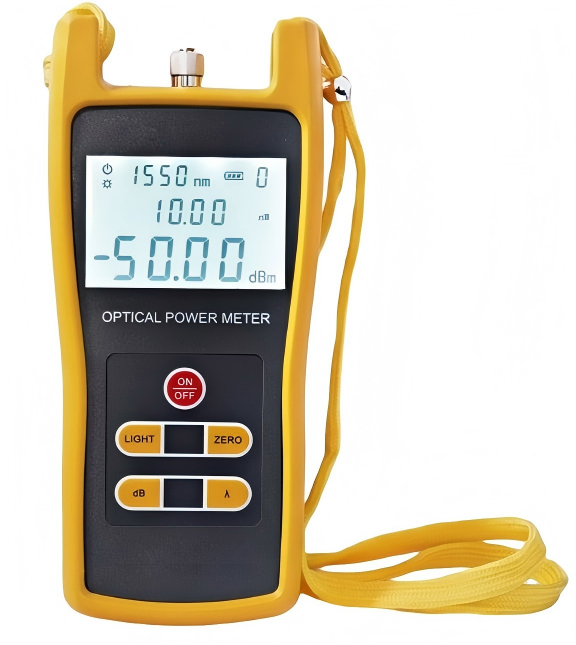

Optical Power Meter OPM
LG-OPM-Y202
Product Overview
LG-OPM-Y optical power meter, measuring range support -70~+6dBm or -50~+26dBm. When used in conjunction with the model LG-OLS-Y light source, it can achieve loss detection of various long-distance or short distance optical communication lines.
Product Information
Product Details
Specification
Wavelength | 800~1700nm | |
Calibrated Wavelength | 850/980/1300/1310/1490/1550nm | |
Measuring Range | -70 to +6dBm | -50 to +26dBm |
Detector Type | InGaAs | |
Accuracy | <±3% (-10dBm、22℃) | |
Resolution | 0.01dBm | |
Uncertainty | ±5%dB | |
Connector | FC/SC/ST are optional | |
Operating Temp | -10 to +60℃ | |
Storage Temp | -25 to +70℃ | |
Power supply | 3pcs* AA battery 1.5V | |
Auto shutdown time | > 10min | |
Working hours | >240 hours | |
Dimension | 175*82*33mm | |
Weight | 310g | |
Ordering Information
Model | Description |
LG-OPM-Y201 | Optical Power Meter, -70 to +6dBm |
LG-OPM-Y202 | Optical Power Meter, -50 to +26dBm |
