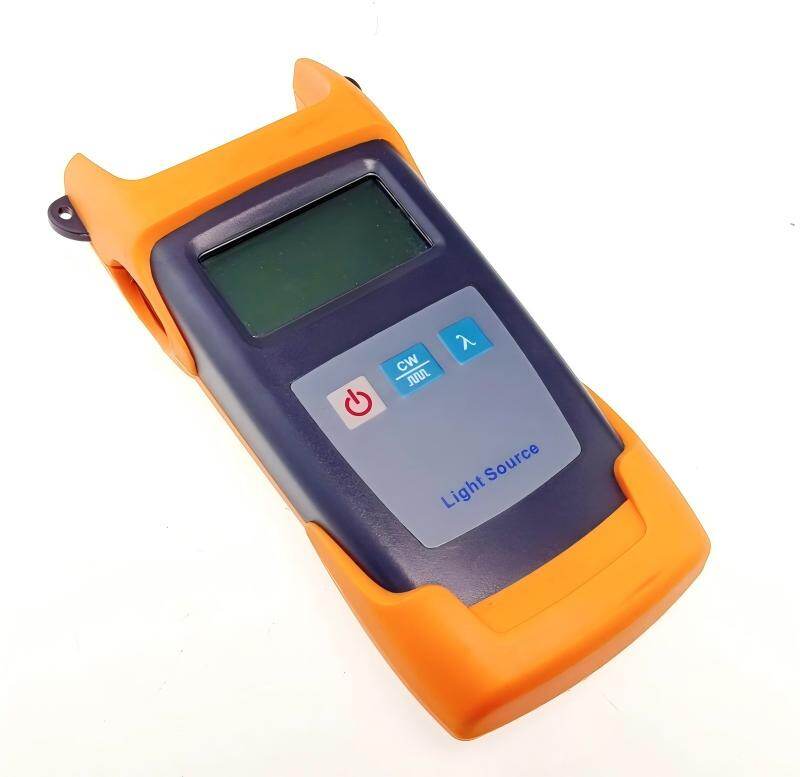

Multi Wavelength Optical Light Source LS
LG-OLS-C202
Product Overview
LG-OLS-C light source support 1~4 wave SM/MM output, when used in conjunction with the model LG-OPM-C optical power meter, it can achieve loss detection of various long-distance or short distance optical communication lines.
Product Information
Product Details
Specification
Laser Type | FP-LD |
Wavelength | 850nm, 1300nm, 1310nm, 1490nm, 1550nm ( 1~4 wave option) |
Fiber Type | SM, MM |
Optical Connector | FC/PC |
Output Power | -7 / -7dBm |
Adjustable output power step | Output power range -5~-9 dBm: <0.5 Output power range -9~-12 dBm: <1.0 |
Output Stability(dB) | ±0.05dB/18min; ±0.1dB/8hours |
Modulation Frequencies | CW / 270Hz, 1KHz, 2KHz (1310nm, 1550nm) |
Power Supply | 3pcs AA 1.5V Alkaline battery; AC adapter 9V |
Continuous working time | 45 hours |
Operating Temperature | -10℃～+60℃ |
Storage Temperature | -25℃～+70℃ |
Dimension | 190*100*50 (mm) |
Weight | 400g |
Ordering Information
Model | Description |
LG-OLS-C201 | light source: MM 850nm/1300nm |
LG-OLS-C202 | light source: SM 1310nm/1550nm |
LG-OLS-C203 | light source: SM 1310nm/1490nm/1550nm |
LG-OLS-C204 | light source: 850nm/1300nm/1310nm/1550nm |
