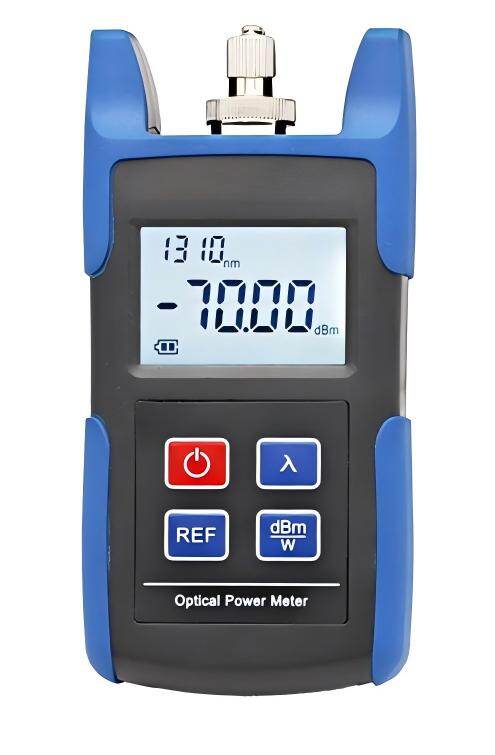

Mini Optical Power Meter OPM
LG-OPM-B102
Product Overview
LG-OPM-B10 series optical power meter, measuring range support -70~+10dBm or -50~+26dBm. When used in conjunction with the model LG-OLS-B10 handheld light source, it can achieve loss detection of various long-distance or short distance optical communication lines.
Product Information
Product Details
Specification
Wavelength | 800~1700nm | |
Calibrated Wavelength | 850/1300/1310/1490/1550/1625nm | |
Measuring Range | Type A: -70~+10dBm | Type B:-50~+26dBm |
Detector Type | InGaAs | |
Resolution | 0.01dBm | |
Accuracy | ±0.2dB | |
Connector | FC/PC & 2.5mm universal | |
Reference value storage | Yes | |
Operating Temp | -10 to +50℃ | |
Storage Temp | -20 to +60℃ | |
Power supply | 3pcs* AA battery 1.5V, or AC adapter 8.4V | |
Battery charge | Yes | |
Auto shutdown time | > 10min | |
Working hours | >100 hours | |
Dimension | 160*75*32mm | |
Net Weight | 160g | |
Ordering Information
Model | Description |
LG-OPM-B101 | Optical power meter, measuring range: -70dBm to +10dBm |
LG-OPM-B102 | Optical power meter, measuring range: -50dBm to +26dBm |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OPM-B102 | Mini Optical Power Meter OPM | In Stock |
