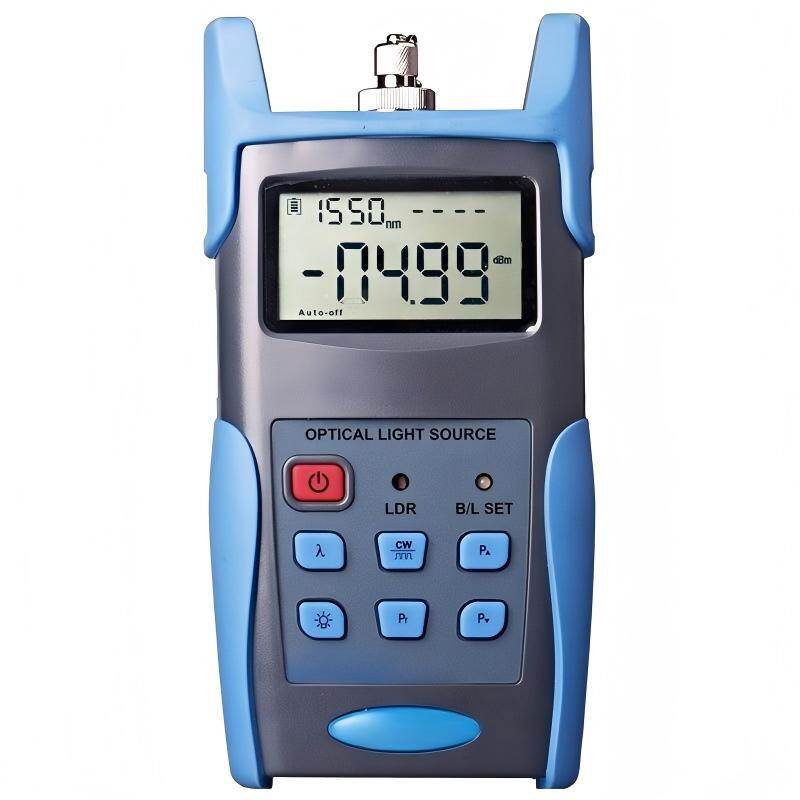

Multi Wavelength Optical Light Source
LG-OLS-B202
Product Overview
LG-OLS-B light source support 1~4 wavelength output, when used in conjunction with the model LG-OPM-B optic power meter, it can achieve loss detection of various long-distance or short distance optical communication lines.
Product Information
Product Details
Specification
Laser Type | FP-LD |
Wavelength | 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm ( 1~4 wave option) |
Fiber Type | SM, MM |
Optical Connector | FC/PC |
Output Power | -5~-12dBm |
Adjustable output power step | Output power range -5~-9 dBm: <0.5 Output power range -9~-12 dBm: <1.0 |
Output Stability(dB) | ±0.05@20℃@30min |
Modulation Frequencies | CW, 270Hz, 330Hz, 1KHz, 2KHz |
Power Supply | 3pcs AA 1.5V Alkaline battery; AC adapter 8.4V |
Continuous working time | 45 hours |
Operating Temperature | -10℃～+60℃ |
Storage Temperature | -25℃～+70℃ |
Dimension | 175*90*44.5 (mm) |
Weight | 225g |
Ordering Information
Model | Description |
LG-OLS-B201 | LS with output 2 waves: MM 850/1300nm |
LG-OLS-B202 | LS with output 2 waves: SM 1310/1550nm |
LG-OLS-B203 | LS with output 3 waves: SM 1310/1490/1550nm |
LG-OLS-B204 | LS with output 4 waves: 850/1300/1310/1550nm |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OLS-B202 | Multi Wavelength Optical Light Source | In Stock |
