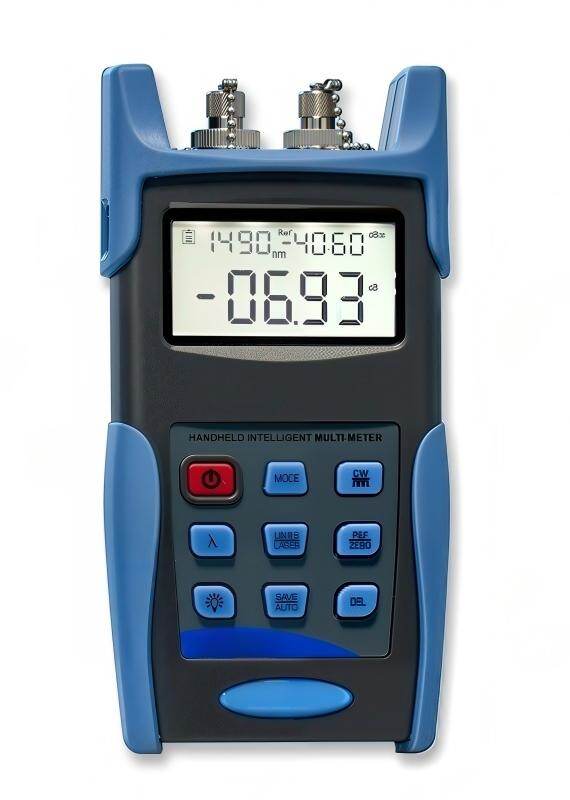

Optical Multi-Meter OPM plus LS function
LG-OMM-B202
Product Overview
Fiber optic multi-meter is a cost-effective instrument that combines the functions of optical power meter and light source.
Product Information
Product Details
Specification
Optic Power Meter (OPM) module | |
Calibration wavelength | 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm |
Testing range | -70dBm～+6dBm or -50dBm～+26dBm |
Connector | SC/FC/ST |
Display resolution | 0.01dB |
Uncertainty | ≤±0.25dB |
Linearity | ≤±0.1dB |
Frequency detection range | ＜10K |
Optic Light Source (LS) module | |
Working wavelength | SM 1310nm/1550nm (or customizable) |
Connector | SC/FC/ST |
Typical Output Power | -5 dBm |
Stability (30min, 20℃) | ≤0.1dB |
Modulation frequency | CW, 270Hz,1KHz, 2KHz |
Visual Fault Locator Model (VFL is optional) | |
Wavelength | 650nm±20nm |
Output power | 1mW (10mW is optional) |
Connector | 2.5mm Universal |
Laser safety rating | Class II |
Output modes | CW 2Hz |
Others | |
Power Supply | 3pcs AA 1.5V Alkaline battery; Or mini USB 5V adapter |
Auto-off time | 10min |
continuous working time | 50 hours @ light source on 200 hours @ light source off |
Communication Interface | Mini USB |
Operating Temperature | -10℃～+60℃ |
Storage Temperature | -25℃～+70℃ |
Dimension | 175*90*44.5 (mm) |
Weight | 265g |
Ordering Information
LG-OMM-B201 | Optical Multi-meter OPM testing range: -70dBm～+6dBm LS: SM 1310nm/1550nm |
LG-OMM-B202 | Optical Multi-meter OPM testing range: -50dBm～+26dBm LS: SM 1310nm/1550nm |
