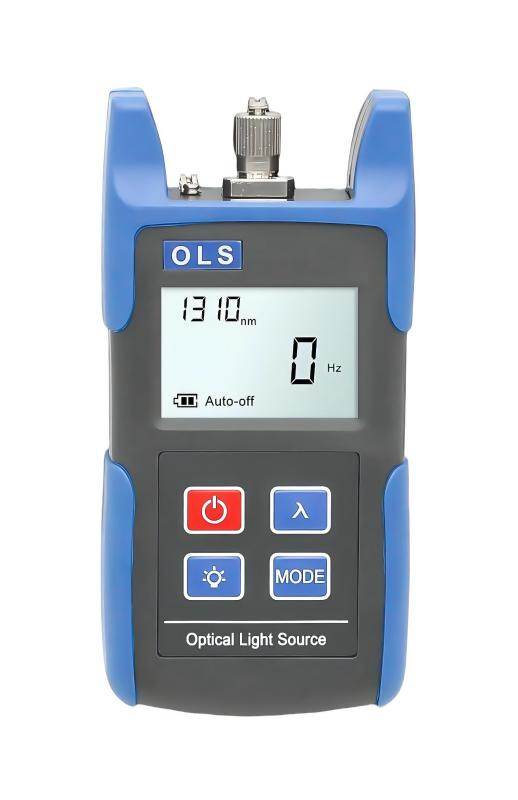

Multi Wavelength Mni Optical Light Source
LG-OLS-B102
Product Overview
LG-OLS-B10 series light source support 2 wavelength SM or MM output. When used in conjunction with the model LG-OPM-B10 optic power meter, it can achieve loss detection of various long-distance or short distance optical communication lines.
Product Information
Product Details
Specification
Laser Type | FP-LD |
Wavelength | 850nm/1300nm, 1310nm/1550nm |
Fiber Type | SM, MM |
Optical Connector | FC/PC (default), SC/ST is optional |
Output Power | ≥ -7dBm @ 850/1300nm ≥ -7/0dBm @ 1310/1550nm |
Adjustable output power step | Output power range -5~-9 dBm: <0.5 Output power range -9~-12 dBm: <1.0 |
Output Stability(dB) | ±0.04@20℃@15min |
Modulation Frequencies | CW, 270Hz,1KHz,2KHz |
Power Supply | 3pcs AA 1.5V Alkaline battery |
Continuous working time | 30 hours |
Operating Temperature | -10℃～+60℃ |
Storage Temperature | -25℃～+70℃ |
Dimension | 125*65*29 (mm) |
Weight | 160g |
Ordering Information
Model | Description |
LG-OLS-B101 | light source: MMF 850nm/1300nm |
LG-OLS-B102 | light source: SMF 1310nm/1550nm |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OLS-B102 | Multi Wavelength Mni Optical Light Source | In Stock |
