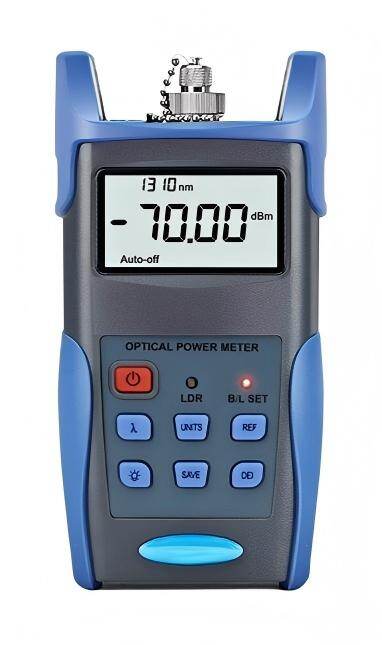

Optical Power Meter
LG-OLS-B202
Product Overview
LG-OPM-B optical power meter, measuring range support -70~+10dBm or -50~+26dBm. When used in conjunction with the model LG-OLS-B handheld light source, it can achieve loss detection of various long-distance or short distance optical communication lines.
Product Information
Product Details
Specification
Wavelength | 800~1700nm | |
Calibrated Wavelength | 850/1300/1310/1490/1550/1625nm | |
Measuring Range | Type A: -70~+10dBm | Type B:-50~+26dBm |
Detector Type | 1mm, InGaAs | |
Resolution | 0.01dBm | |
Uncertainty | ±0.15dB | |
Connector | FC/SC/ST are optional | |
Frequency identification range | CW/270Hz, 330Hz, 1kHz, 2kHz | |
Data storage | 1000 groups | |
Data Interface | USB | |
Operating Temp | -10 to +60℃ | |
Storage Temp | -25 to +70℃ | |
Power supply | 3pcs* AA battery 1.5V, power adapter 8.4V | |
Auto shutdown time | > 10min | |
Working hours | >200 hours | |
Dimension | 175*90*44.5mm | |
Weight | 231g | |
Ordering Information
Model | Description |
LG-OPM-B201 | OPM with measuring range -70dBm to +10dBm |
LG-OPM-B202 | OPM with measuring range -50dBm to +26dBm |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OLS-B202 | Optical Power Meter | In Stock |
