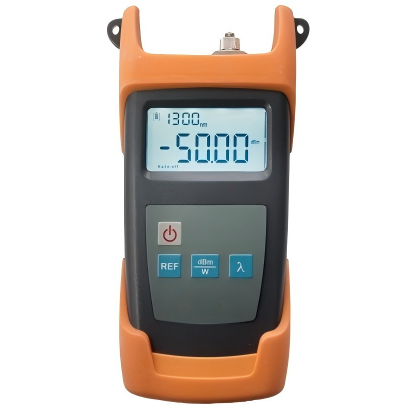

Optical Power Meter
LG-OPM-C202
Product Overview
LG-OPM-C optical power meter, measuring range support -70~+10dBm or -50~+30dBm. When used in conjunction with the model LG-OLS-C handheld light source, it can achieve loss detection of various long-distance or short distance optical communication lines.
Product Information
Product Details
Specification
Wavelength | 800~1700nm | |
Calibrated Wavelength | 850/1300/1310/1490/1550/1625nm | |
Measuring Range | -70 to +10dBm | -50 to +30dBm |
Detector Type | 1mm, InGaAs | |
Resolution | Linearity：0.1%，Non-linearity：0.01dBm | |
Uncertainty | ±0.25dB | |
Connector | FC/SC/ST are optional | |
Operating Temp | -10 to +60℃ | |
Storage Temp | -25 to +70℃ | |
Power supply | 3pcs* AA battery 1.5V, power adapter 8.4V | |
Auto shutdown time | > 10min | |
Working hours | >140 hours | |
Dimension | 192*102*50mm | |
Net Weight | 300g | |
Ordering Information
Model | Description |
LG-OPM-C201 | OPM with measuring range -70dBm to +10dBm |
LG-OPM-C202 | OPM with measuring range -50dBm to +30dBm |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OPM-C202 | Optical Power Meter | In Stock |
