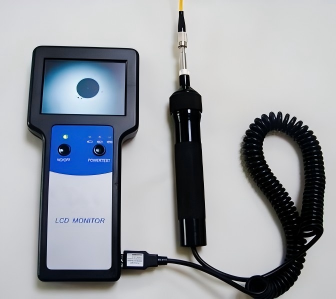

Probe Optical Fiber Microscope, 200x 400x magnification
LG-OFM-200
Product Overview

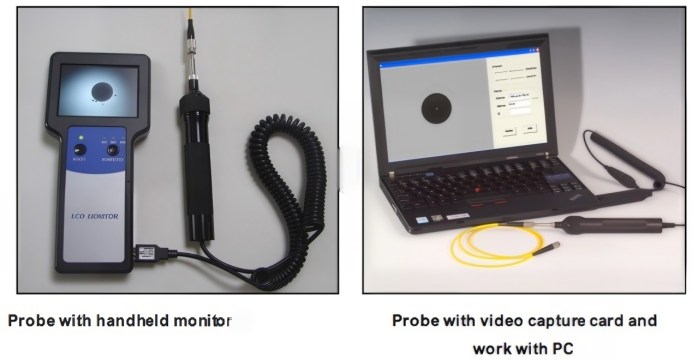

Probe Fiber Microscope can be used to inspect the male connector ends but also to inspect the female bulkhead adapters.
Product Information
Product Details
Description
Probe Fiber Microscopes offers 200x or 400x magnification for the fibers of 125um diameter (both SM and MM fibers are included). It not only can be used to inspect the male connector ends but also to inspect the female bulkhead adapters.
Specification
Magnification | 200X or 400X |
AV output | PAL |
Display Screen | 3.5〃TFT 220 K LCD |
Power Consumption | 3W |
Working Temp | -10℃—+50℃ |
Storage Temp | -20℃—+60℃ |
Voltage | 12V recharge battery or DC 12V with adaptor |
Working Hours | More than 6 hours |
Dimension | Monitor:205mm(L)×94mm(W)×25mm(H); Microscope: 23mm×160mm |
Ordering Information
Model | Description |
LG-OFM-200 | Probe Fiber Microscopes, 200x magnification |
LG-OFM-400 | Probe Fiber Microscopes, 400x magnification |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OFM-200 | Probe Optical Fiber Microscope, 200x 400x magnification | In Stock |
