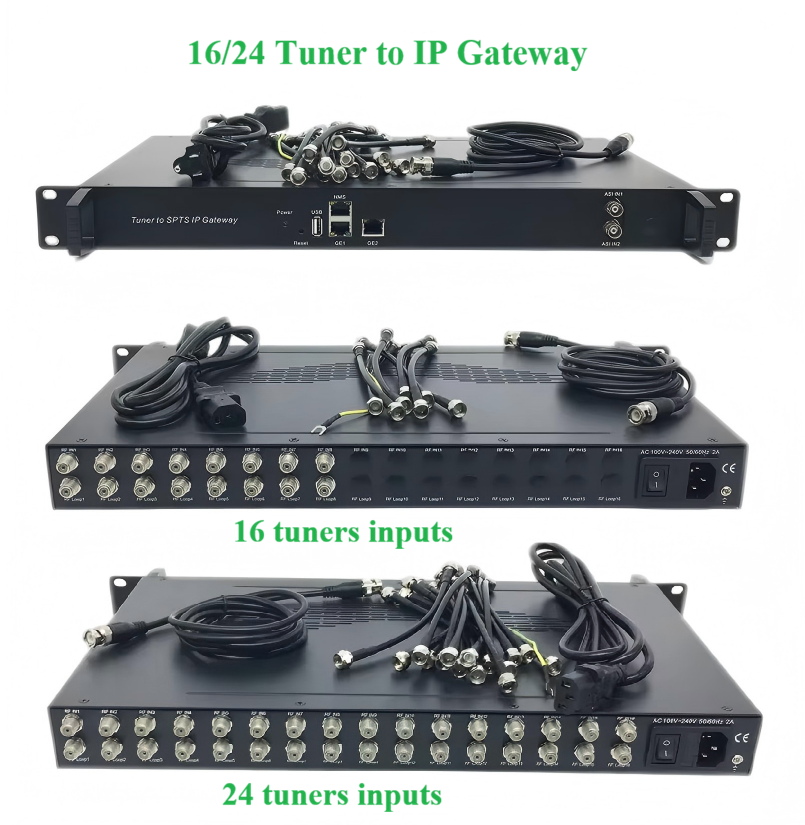

Satellite TV 16/24 Tuner to IP Gateway

Input

24 tuners inputs,

2 ASI inputs,

1 USB input --- SPTS/MPTS output

Output

1024 SPTS IP output over UDP and RTP/RTSP protocol through DATA1 and DATA2 port, Unicast and Multicast.

 (IP address and port No. of DATA1 and DATA2 are different)

27 MPTS IP output (for Tuner/ASI/USB pass-through) over UDP and RTP/RTSP protocol through DATA1 and DATA2 port, Unicast and Multicast

2 ASI outputs(MPTS out mode)

BISS descrambling

Mode 1, Mode E (Up to 850Mbps)

(descramble individual program)

System

Web based management, Ethernet software upgrade

Dimension

482mm×270mm×44mm (W×L×H)

Environment

0~45℃(work); -20~80℃(Storage)

Power Supply

100~240VAC, 50/60Hz

Satellite DVB-S

Frequency In

950~2150MHZ

Symbol rate

0.5~45Msps

Signal Strength

-65~-25dBm

FEC

1/2, 2/3, 3/4, 5/6, 7/8

Constellation

QPSK

Max input rate

≤125Mbps

Satellite DVB-S2

Frequency In

950~2150MHZ

Symbol rate

QPSK/8PSK /16APSK: 0.5~45 Msps

32APSK: 0.5~34Msps:

FEC

QPSK: 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10

8PSK: 3/5,2/3,3/4,5/6,8/9,9/10

16APSK: 2/3,3/4,4/5,5/6,8/9,9/10

32APSK: 3/4,4/5,5/6,8/9,9/10

Constellation

QPSK, 8PSK, 16APSK, 32APSK

Max input rate

≤125Mbps

Satellite DVB-S2X

Frequency In

950~2150MHZ

Symbol rate

QPSK/8PSK /16APSK: 0.5~45 Msps

8APSK:0.5~40Msps

32APSK:0.5~34Msps

FEC

QPSK: 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10,13/45,9/20,11/20

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

8APSK: 5/9-L, 26/45-L

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36,13/18,7/9, 77/90

32APSK:3/4, 4/5, 5/6, 8/9 ,9/10, 2/3-L, 32/45, 11/15, 7/9

Constellation

QPSK, 8PSK, 8APSK, 16APSK, 32APSK

Max input rate

≤125 Mbps

Model

Description

LG-RF-IP-16

16 FTA tuners to IP Gateway

LG-RF-IP-24

24 FTA tuners to IP Gateway
