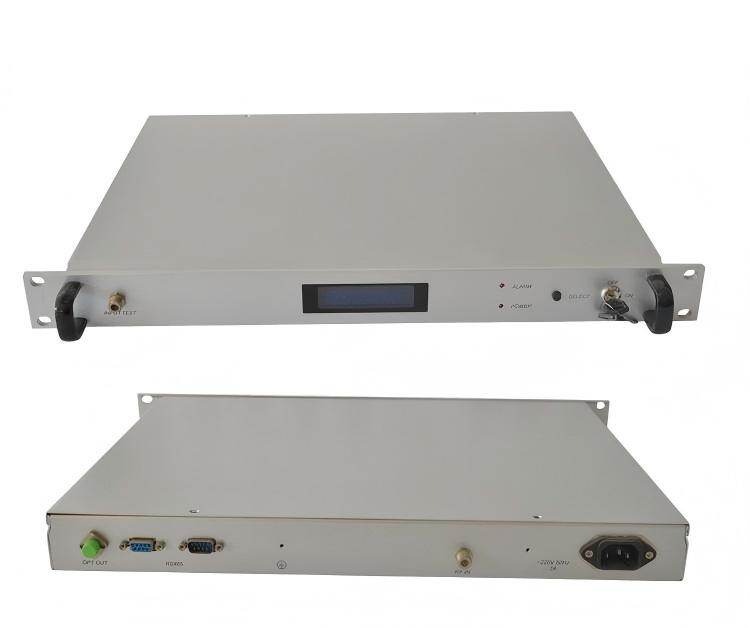

CATV Optical transmitter 1310nm
LG-OT-1310-10
Product Overview
1310nm Optical transmitter, SC/APC, output power 2~30dBm
Product Information
Product Details
Feature
LCD displays the working condition of the machine
Support network management monitoring function.
The laser emission and RF processing circuits adopt a modular design approach.
Optimized integrated design of pre-distortion, amplifier, and laser.
With laser key to turn on/off the laser.
With RF test function.
Can be easily installed on a 19-inch rack
Specification
Interface | 1x RF port, 1x Optic port |
Management Port | RS232 |
Optic connector | SC/APC, FC/APC (optional) |
RF connector | Metric or Inch |
Laser type | DFB |
Optic wavelength | 1310nm±5nm |
Optic output power | 2~30mW (optional) |
Optic Return Loss | >60dB |
Frequency Range | 47～860MHz; 47～1000MHz(optional) |
RF input level | 75～85 dBµV |
RF input impedance | 75Ω |
Flatness | ±0.75 dB |
RF Return Loss | >14dB |
CNR/ CTB / CSO/SBS | >53dB / ≥65dB / ≥63dB / <12dBm |
Power supply | 85~265V AC, 50/60Hz; DC 38~58V Dual power supply is optional |
Power consumption | <40W |
Dimension | 483*385*44 mm |
Environment Temp | Operating Temp: 0℃~50℃ Storage Temp: -20℃~85℃ RH: 20%~85% |
Ordering Information
Model | Description |
LG-OT-1310-10 | Optical transmitter, 1310nm, SC/APC, output power 10dBm, single power supply |
LG-OT-1310-20 | Optical transmitter, 1310nm, SC/APC, output power 20dBm, single power supply |
LG-OT-1310-30 | Optical transmitter, 1310nm, SC/APC, output power 30dBm, single power supply |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OT-1310-10 | CATV Optical transmitter 1310nm | In Stock |
