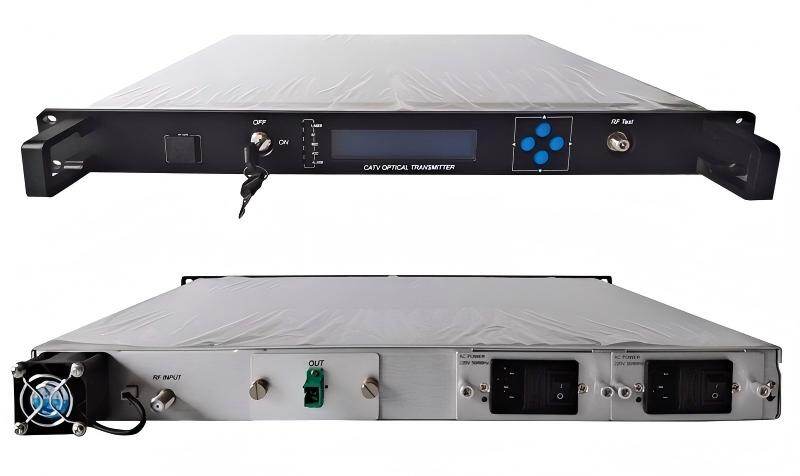

Directly Modulated CATV Optical Transmitter 1550nm
LG-OT-1550-10
Product Overview
1550nm Optical transmitter, SC/APC, output power 2~10dBm
Product Information
Product Details
Feature
LCD displays the working condition of the machine
Support network management monitoring function.
The laser emission and RF processing circuits adopt a modular design approach.
Optimized integrated design of pre-distortion, amplifier, and laser.
With laser key to turn on/off the laser.
With RF test function.
Plug-in Dual power supply and support cold/hot backup.
Can be easily installed on a 19-inch rack
Specification
Interface | 1x RF port, 1x Optic port |
Management Port | RJ45 |
Optic connector | SC/APC, FC/APC (optional) |
RF connector | Metric or Inch |
Laser type | DFB |
Optical modulation | Intensity modulation |
Optic wavelength | 1550nm±10nm |
Output power | 2~10dB (optional) |
Frequency Range | 47～750MHz; 47～862MHz(optional) |
RF input level | 75～85 dBµV (AGC automatic control) |
RF input impedance | 75Ω |
Flatness | ±0.75 dB |
RF Return Loss | >16dB @ 47～550MHz >14dB @550～862MHz |
CNR/ CTB / CSO | ≥52dB / ≥65dB / ≥65dB |
Power supply | 90~265V AC, 50/60Hz; DC 38~58V Dual power supply is optional |
Power consumption | ≤20W |
Dimension | 483*385*44 mm |
Environment Temp | Operating Temp: 0℃~50℃ Storage Temp: -20℃~85℃ RH: 20%~85% |
Ordering Information
Model | Description |
LG-OT-1550-10 | Directly Modulated Optical transmitter, 1550nm, SC/APC, output power 10dBm |
LG-OT-1550-08 | Directly Modulated Optical transmitter, 1550nm, SC/APC, output power 8dBm, |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OT-1550-10 | Directly Modulated CATV Optical Transmitter 1550nm | In Stock |
