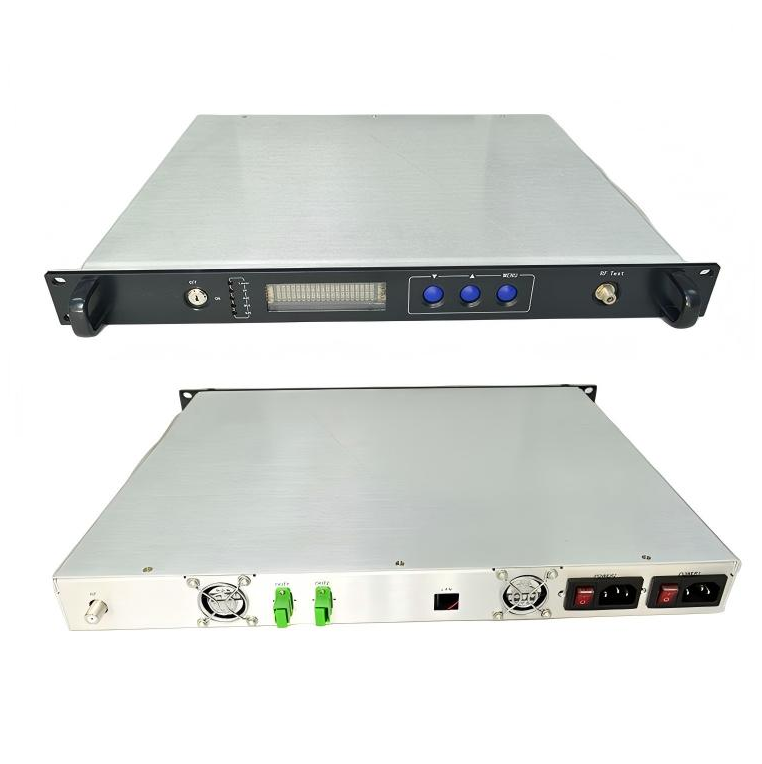

External Modulated CATV Optical Transmitter 1550nm
LG-OT-1550-7509
Product Overview
External modulated optical transmitter with AGC, 1550nm, SC/APC, 2 optical output ports, output power 7dBm or 9dBm, RF 47～750MHz or RF 47～862MHz
Product Information
Product Details
Feature
LCD displays the working condition of the machine
Support network management monitoring function.
The laser emission and RF processing circuits adopt a modular design approach.
Optimized integrated design of pre-distortion, amplifier, and laser.
With laser key to turn on/off the laser.
With RF test function.
Plug-in Dual power supply and support cold/hot backup.
Can be easily installed on a 19-inch rack
Specification
Interface | 1x RF port, 2x Optic port |
Management Port | RJ45 (support WEB, SNMP) |
Optic connector | SC/APC, FC/APC (optional) |
RF connector | Metric or Imperial |
Laser type | DFB (JDUS, Fujitsu, MITSUBISHI) |
Optical modulation | External modulation |
Optic wavelength | 1550nm±10nm |
Output power | 2*7dB, 2*9dB (optional) |
SBS | 16.5dB (13, 16, 18 for option) |
Frequency Range | 47～750MHz; 47～862MHz(optional) |
RF input level | 78～88 dBµV (AGC automatic control) |
RF input impedance | 75Ω |
Flatness | ±0.75 dB |
RF Return Loss | >16dB @ 47～550MHz >14dB @550～862MHz |
CNR/ CTB / CSO | ≥52dB / ≥65dB / ≥65dB |
Power supply | AC 90~265V , 50/60Hz; DC-48V is optional; Dual power supply is optional |
Power consumption | ≤50W |
Dimension | 483*385*44 mm, 1U 19inch rack mounted |
Weight | 5.5KG |
Environment Temp | Operating Temp: 0℃~50℃ Storage Temp: -20℃~85℃ RH: 20%~85% |
Ordering Information
Model | Description |
LG-OT-1550-7507 | External modulated optical transmitter with AGC, 1550nm, SC/APC, 2 optical output ports, output power 7dBm. RF 47～750MHz |
LG-OT-1550-7509 | External modulated optical transmitter with AGC, 1550nm, SC/APC, 2 optical output ports, output power 9dBm, RF 47～750MHz |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OT-1550-7509 | External Modulated CATV Optical Transmitter 1550nm | In Stock |
