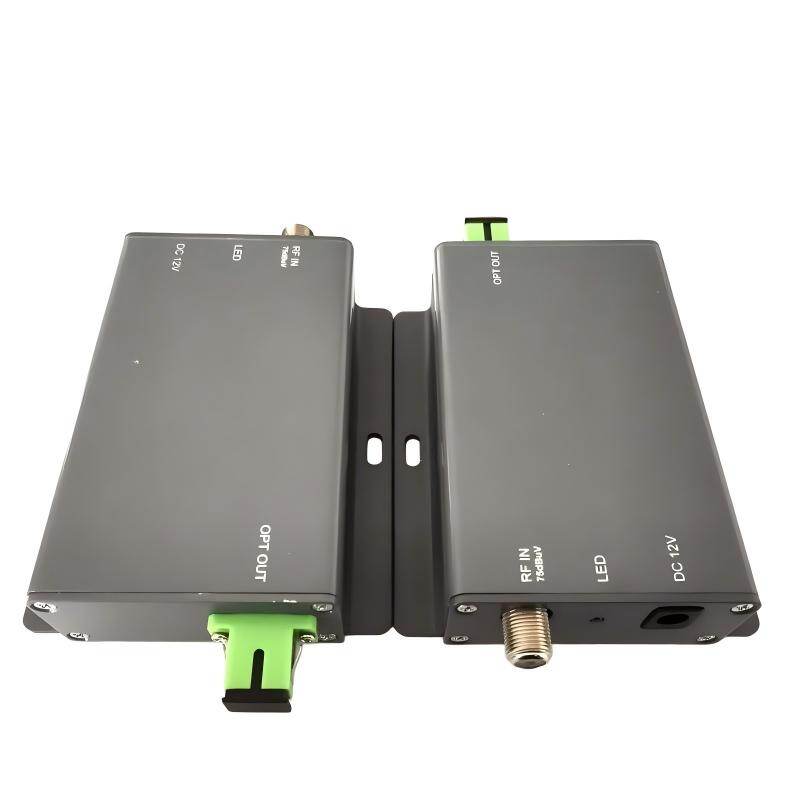

Mini CATV Optical Transmitter 1310nm
LG-OT-1310-M
Product Overview
Mini Optical transmitter, 1310nm, SC/APC, output power 10dBm, DC 12V power supply.
Product Information
Model: LG-OT-1310-M
Status: In Stock
Product Details
Specification
Interface | 1x RF port, 1x Optic port |
Optic connector | SC/APC, FC/APC (optional) |
RF connector | Metric or Inch |
Optic wavelength | 1310nm±5nm |
Optic output power | 10dB |
Optic Return Loss | 45dB |
Frequency Range | 47～1000MHz |
RF input level | 75dBµV |
RF input impedance | 75Ω |
Flatness | ±0.75 dB |
RF Return Loss | >16dB |
CNR/ CTB / CSO | 51dB / 58dB / 63dB |
Power supply | DC 12V with external adapter |
Environment Temp | Operating Temp: 0℃~50℃ Storage Temp: -20℃~70℃ RH: 20%~85% |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OT-1310-M | Mini CATV Optical Transmitter 1310nm | In Stock |
