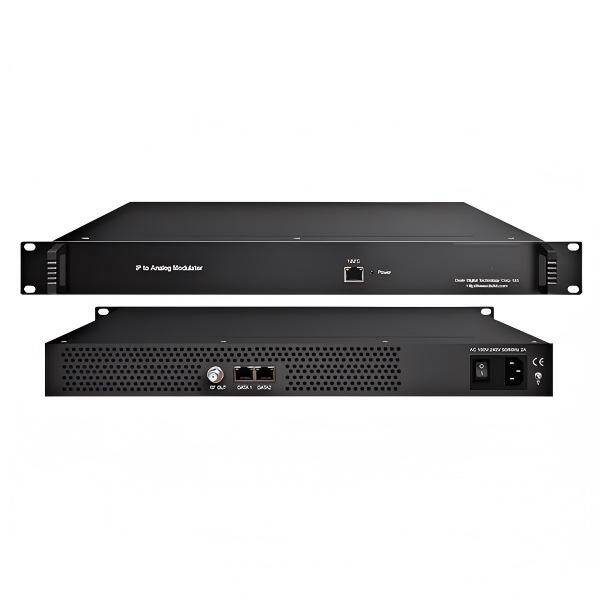

IP to Analog Modulator

Input

Interface, rate

4 GE ports (max 64 IP input)

Max 840Mbps for each GE input

Stream

UDP, UDP / RTP,

1-7 packets (SPTS/MPTS)

Transport Protocol

UDP/RTP, unicast and multicast,

IGMP V2/V3

Packet Length

188 / 204 Bytes

Network Interface

Management: 1 x 100 Base-T Ethernet (RJ 45)

Data: 4 x 1000 Base-T Ethernet (RJ 45)

Image resolution output

480i/576i

OSD

Logo : JPG, BMP, PNG

Caption : support multiple languages, scrolling direction and speed customized

Output volume adjustment

0~100%

Dimension

483mm×330mm×88mm (W×L×H), 19inch rack mounted

Environment

0~45℃(work); -20~80℃(Storage)

Power Supply

100~240VAC, 50/60Hz

Decoding Parameter

Video

HEVC/H.265,H.264/AVC,MPEG-2

Audio

MPEG-1/2 Layer 1/2,(HE-)AAC,AC3

Data

CC,Teletext,Subtitles,DVB Subtitling

Resolutions

HEVC/H.265: 1080@60P, 1080@60I, 1080@50P, 1080@50I, 720@60P, 720@50P

H.264/AVC: 1080@60I, 1080@50P, 1080@50I, 1080@30P, 1080@25P, 720@60P, 720@50P, 576@50I, 480@60I

MPEG2: 1080@60I, 1080@50I, 720@60P, 720@50P, 576@50I, 480@60I

Aspect ratio

4:3

Modulation Parameter

Channel number

Up to 64 non-adjacent or adjacent carriers output

Connectors

752,F-jack

Frequency range

43.25-951.252MHz

Output bandwidth

400MHz(each 32 carriers)

Output level

-5~2dBm(102w112dBμV)

Return loss

≥14dB

Spurious frequency dist.

≥60dB

Residual carrier accuracy

1%

TV standard

PAL B/G/D/K/M/N/I,

Video-signal to noise ratio

NTSC M,SECAM

CNR

>60dB (when single carrier on)

55.5dB (when all 64 carriers on)

Model

Description

LG-IP-RF-32

32 in 1, IP to Analog Modulator

LG-IP-RF-64

64 in 1, IP to Analog Modulator
