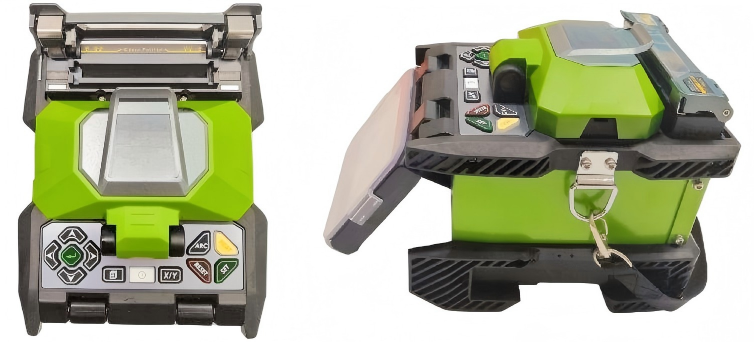

Military Grade Fiber Optic Fusion Splicer (6 motor)

LG-FS-06M

Product Overview

Fiber fusion splicer with 6 motors, touch screen, military grade material guarantee the performance and quality, small size, light weight.

Model: LG-FS-06M

Status: In Stock

Feature

Small size, light weight. camouflage color
7s fast splicing, 18s highly efficient heating.
320 times image magnification, 5mm fusing for ultra-short cleave length
300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records /64 images storage.
Ceramic presser foot, ceramic V-groove, all-in-one fixture.
Dual-directional fusing, auto fusing, intelligent heat shrink.
USB and SD card interface, auto update of U disk.
Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles.
GUI (graphical user interface) and touch screen, convenient for operation.
Military grade material guarantee the performance and quality.
Dust-resistant, water-resistant, shock-resistant, greater environment adaptability.

Specification

Model	LG-FS-06M
Motor qty	6
Alignment method	Core alignment, Cladding alignment,
Applicable fibers	Any common optical fibers, rubber-insulated fibers and jumpers that meet requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
Optical fiber diameter	Cladding: 80~150μm, coating layer: 0.1~3mm
Cleave length	5~16mm (coated optical fiber diameter ≤250μm) 10mm (coated optical fiber diameter 0.25~3mm)
Splice loss（typical）	0.02dB(SMF); 0.01dB(MMF); 0.04dB(DSF); 0.04dB(NZDSF）
Return loss	Better than 60dB
Splicing time (typical)	7s (Fast mode)
Heating time (typical)	18s（60mm protection sleeve）
Tension	1.96～2.25N
Protection sleeve	60mm, 40mm and a series of protection sleeves
Graphical display	High-performance 4.3 inch LCD (touch screen)
Magnification time	320 times/88 times
Fusion records	10000 groups
Remote maintenance	N/A
Battery capacity	11.1V, 6800mAh
Battery service life	Cycle charging: 300～500 counts, can be replaced by customers
Electrode service life	Typical: 4000 counts, can be replaced by customers
Construction lighting	Built-in lights with high-brightness and wide lighting area
Working environment	Temp:-10～50℃；Hum: 0～95%RH， height above sea level: 0～6000m
Operation interfaces	GUI (graphical user interfaces)
External power	AC: 100～240V, 60Hz, 0～1.5A; DC: 10～15V
Port	USB / SD
Dimensions	120mm（W）×130mm（H）×154mm（D）（without rubber anti-vibration pad）
Net Weight	1.7kg (the battery not included） 2.0kg (included the battery）
