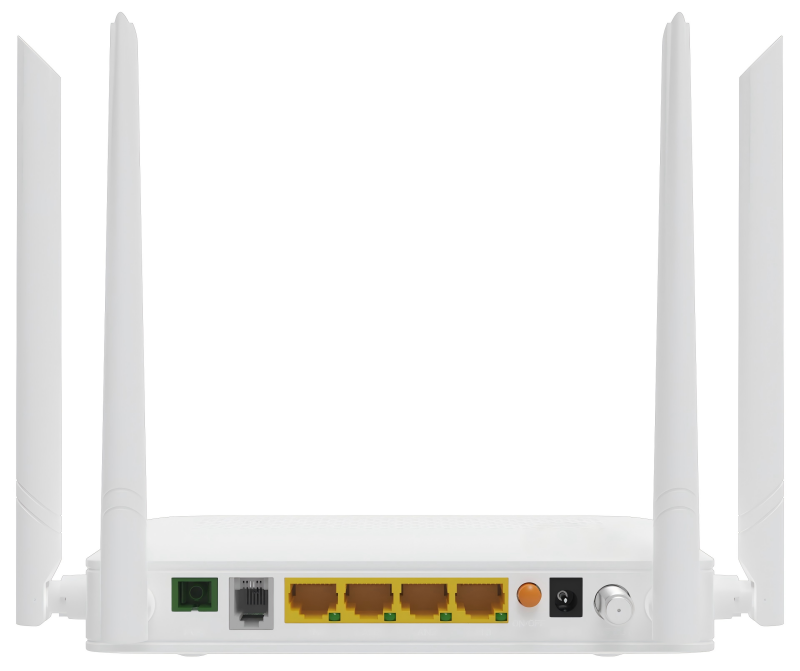

XPON HGU ONT 4GE+1POTS+CATV+USB+WiFi5
LG-ONT-XPON-4GT1P-AC5
Product Overview
XPON HGU ONT: support EPON/GPON dual mode, 1GE(WAN/LAN1), 3*GE(LAN), 1* POTS, 1* USB 3.0, 1* CATV, AC Wi-Fi 5.
Product Information
Product Details
The HGU ONU is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services. The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac Wi-Fi 5 technology and other Layer 2, Layer 3 functions, providing data service for carrier-grade FTTH applications.
Specification
Model | LG-ONT-XPON-4GT1P-AC5 |
PON interface | 1 XPON port (EPON PX20+, GPON Class B+) Single mode, SC/APC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload power: -3dBm (EPON), -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
User interface | 4*GE, Auto-negotiation RJ45 connectors (LAN1 supports WAN mode) 1* POTS RJ11 Connector 1* USB 3.0 1* CATV F connector |
XPON mode | Dual mode, auto-access to EPON/GPON OLT |
Connection mode | bridge, router & bridge/router mixed mode |
Power supply | DC 12V, 1.5A, external AC-DC power adaptor |
Power consumption | ≤12W |
Indicator | POWER, LOS, PON, LAN1～4, 2.4G, 5.0G, USB, PHONE |
Dimension | 178mm×120mm×30mm(L×W× H) |
Weight | 0.42KG |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XPON-4GT1P-AC5 | XPON HGU ONT 4GE+1POTS+CATV+USB+WiFi5 | In Stock |
