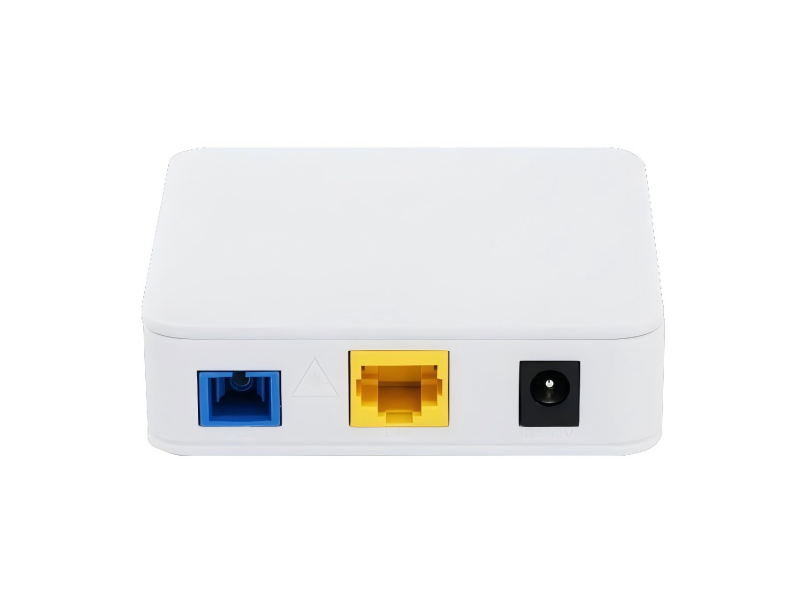

1GE XPON ONU ONT
LG-ONU-XPON-1GE
Product Overview
XPON ONU, support EPON/GPON dual mode, bridging and routing mode.
Product Information
Product Details
The 1GE XPON ONT is specially designed to meet the needs of telecom operators for FTTO, FTTD, FTTH, SOHO broadband access, video surveillance, etc. The ONU is based on high-performance chip technology solutions, and supports Layer 2, Layer 3 functions, providing data services for carrier-grade FTTH applications.
Specification
Model | LG-ONU-XPON-1GE |
PON interface | 1 XPON port (EPON PX20+, GPON Class B+) Single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload power: -3dBm (EPON), -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
LAN interface | 1*GE, Auto-negotiation RJ45 connectors |
XPON mode | Dual mode, auto-access to EPON/GPON OLT |
Uplink mode | Bridging and routing mode |
Abnormal protection | Detecting Rogue ONU, Hardware Dying Gasp |
Firewall | DDOS, Filtering Based on ACL/MAC/URL |
Power supply | DC 12V, 0.5A, external AC-DC power adaptor |
Power consumption | ≤4W |
Indicator | SYS, LINK/ACT, REG |
Dimension | 82mm×82mm×25mm(L×W× H) |
Net weight | 85g |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONU-XPON-1GE | 1GE XPON ONU ONT | In Stock |
