XPON ONT 2GE+WiFi5
LG-ONT-XPON-2GE-AC502
Product Overview

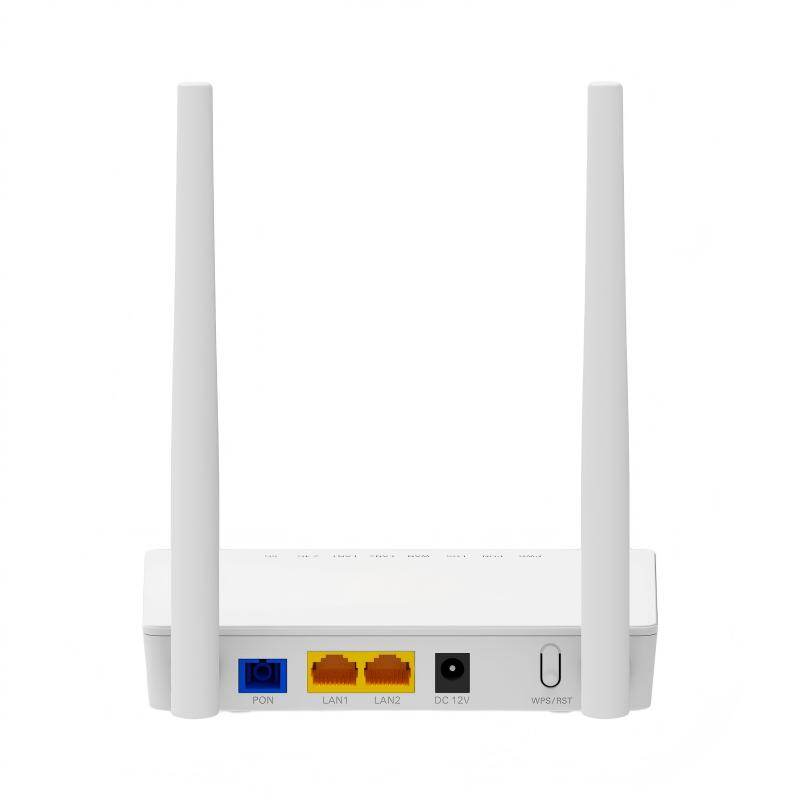

XPON ONT: support EPON/GPON dual mode, 2*GE, AC Wi-Fi 5.
Product Information
Product Details
The XPON ONT is designed to meet the FTTH requirements of fixed network operators. The ONT is based on a high- performance chipset technology solution, supporting IEEE802.11b/g/n/ac WIFI 5 technology and other Layer 2, Layer 3 functions. It has high reliability and is easy to manage and maintain, provides QoS guarantees for different services.
Specification
Model | LG-ONT-XPON-2GE-AC502 |
PON interface | 1 XPON port (EPON PX20+, GPON Class B+) Single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload power: -3dBm (EPON), -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
User interface | 2*GE, Auto-negotiation RJ45 connectors |
XPON mode | Dual mode, auto-access to EPON/GPON OLT |
Connection mode | bridge, router & bridge/router mixed mode |
Power supply | DC 12V, 1A, external AC-DC power adaptor |
Power consumption | ≤12W |
Indicator | PWR, LOS, PON, WAN, LAN1, LAN2, 2.4G, 5G |
Dimension | 140mm×137mm×30mm(L×W× H) |
Weight | 0.2KG |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XPON-2GE-AC502 | XPON ONT 2GE+WiFi5 | In Stock |
