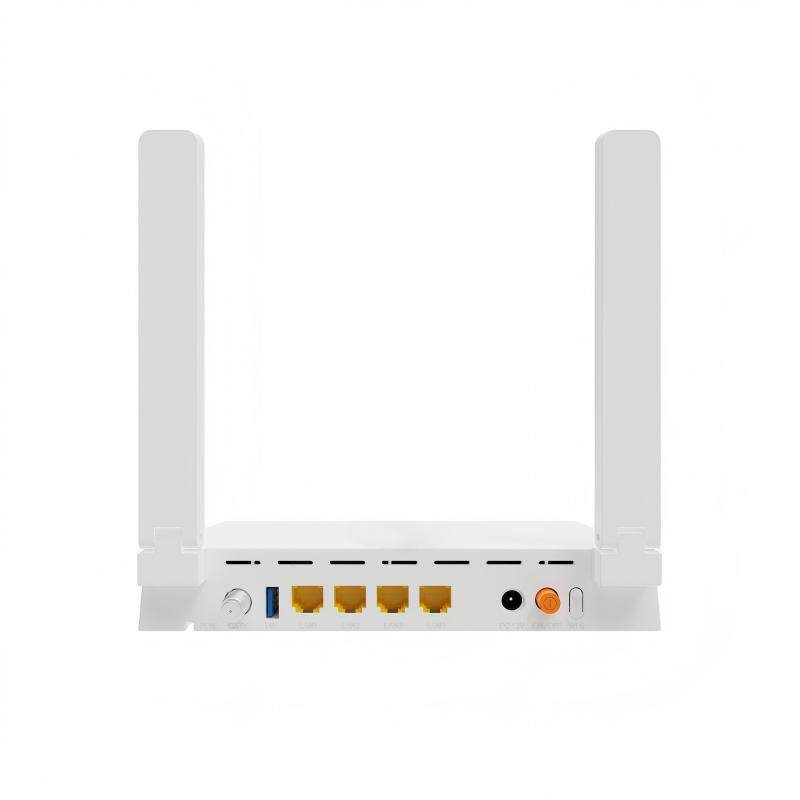

XPON HGU ONT 4GE+CATV+USB+WiFi6
LG-ONT-XPON-4GT-AC6
Product Overview
XPON HGU ONT: support EPON/GPON dual mode, 4*GE, 1* USB 3.0, 1* CATV, AC Wi-Fi 6.
Product Information
Product Details
The XPON HGU ONT is a broadband access device designed to meet the demands of fixed network operators for FTTH and triple-play services. This ONT is based on a high-performance chip solution, supporting XPON dual-mode technology (EPON and GPON). With WiFi 6 speeds of up to 3000Mbps, it also supports layer 2, layer 3 features, providing data services for carrier-grade FTTH applications. It adopts a simplified design, with 2.4G and 5G antennas sharing the same antenna housing.
Specification
Model | LG-ONT-XPON-4GT-AC6 |
PON interface | 1 XPON port (EPON PX20+, GPON Class B+) Single mode, SC/APC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload power: -3dBm (EPON), -8dBm (GPON) Transmission distance: 20KM Wave: TX 1310nm, RX1490nm, CATV 1550nm |
User interface | 4*GE, Auto-negotiation RJ45 connectors 1* USB 3.0 1* CATV F connector |
XPON mode | Dual mode, auto-access to EPON/GPON OLT |
Connection mode | Router mode |
Power supply | DC 12V, 1A, external AC-DC power adaptor |
Power consumption | ≤12W |
Indicator | PWR, LOS, PON, LAN1～4, 2.4G, 5.0G, USB, WPS, CATV |
Dimension | 200mm×157mm×33mm(L×W× H) |
Weight | 0.35KG |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XPON-4GT-AC6 | XPON HGU ONT 4GE+CATV+USB+WiFi6 | In Stock |
