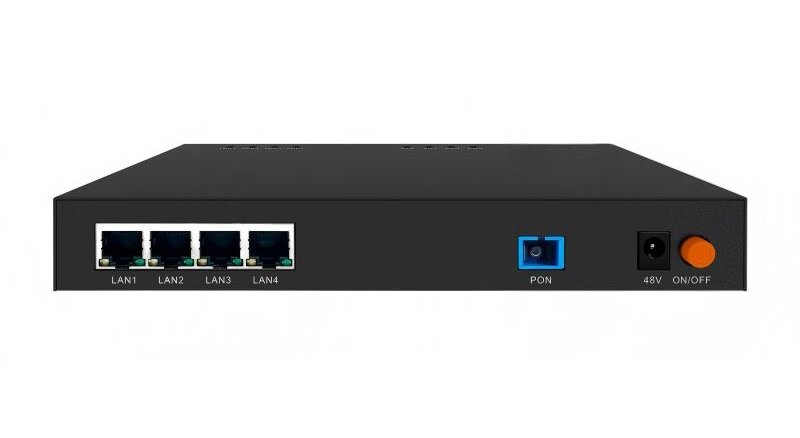

XPON ONT 4GE POE+(PSE)
LG-ONT-XPON-4GE-PSE
Product Overview
XPON ONT: support EPON/GPON dual mode, 4GE(POE+) PSE, each port 30W output.
Product Information
Product Details
The XPON ONT is a broadband access device specially designed to meet the needs of telecom operators for FTTO, FTTD, FTTH, SOHO access, and video surveillance access. It is based on high-performance chip solutions, and also supports Layer 2 functions, providing data service for carrier-grade FTTH applications. The 4 network ports of this ONU all support PoE function, which can power IP cameras, wireless APs, and other devices through network cables. This ONU has high reliability, is easy to manage and maintain, and can provide QoS guarantee for various data services.
Specification
Model | LG-ONT-XPON-4GE-PSE |
PON interface | 1 XPON port (EPON PX20+, GPON Class B+) Single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload power: -3dBm (EPON), -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
LAN interface | 4*GE (POE+), auto-negotiation RJ45 connectors |
XPON mode | Dual mode, auto-access to EPON/GPON OLT |
Uplink mode | Bridging and routing mode |
POE+(PSE) | IEEE 802.3at standard Each port supports max 30W output |
Abnormal protection | Detecting rogue ONU |
Firewall | DDOS, Filtering Based on ACL/MAC/URL |
Power supply | DC 54V, 1.11A, external AC-DC power adaptor |
Power consumption | ≤60W |
Indicator | PWR, PON, LOS, SYS, LAN1~LAN4 |
Dimension | 205mm×125mm×28mm(L×W× H) |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -30 ℃~ +70℃ RH: 10% ~ 90% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XPON-4GE-PSE | XPON ONT 4GE POE+(PSE) | In Stock |
