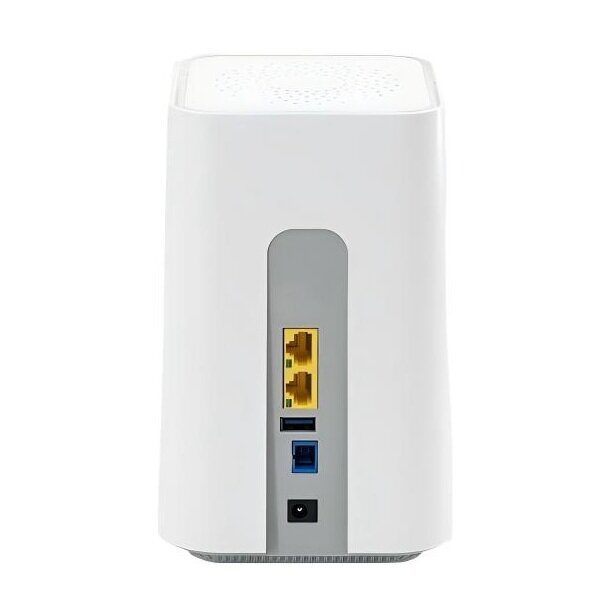

XPON HGU ONT 2GE+USB+WiFi5
LG-ONT-XPON-2GE-AC5
Product Overview
XPON HGU ONT: support EPON/GPON dual mode, 1GE(WAN/LAN1), 1*GE(LAN), 1* USB 3.0, AC Wi-Fi 5
Product Information
Product Details
The XPON ONT is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services. The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac WIFI 5 technology and other Layer 2, Layer 3 functions, providing data service for carrier-grade FTTH applications. The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services.
Specification
Model | LG-ONT-XPON-2GE-AC5 |
PON interface | 1 XPON port (EPON PX20+, GPON Class B+) Single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload power: -3dBm (EPON), -8dBm (GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm |
User interface | 2*GE, auto-negotiation RJ45 connectors (LAN1 supports WAN mode) 1* USB 3.0 1*WPS button (quickly pairing two WiFi device) |
XPON mode | Dual mode, auto-access to EPON/GPON OLT |
Connection mode | bridge, router & bridge/router mixed mode |
Power supply | DC 12V, 1A, external AC-DC power adaptor |
Power consumption | ≤12W |
Indicator | LOS, PON, WiFi, LAN1, LAN2 |
Dimension | 115mm×115mm×180mm(L×W× H) |
Weight | 0.6KG |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XPON-2GE-AC5 | XPON HGU ONT 2GE+USB+WiFi5 | In Stock |
