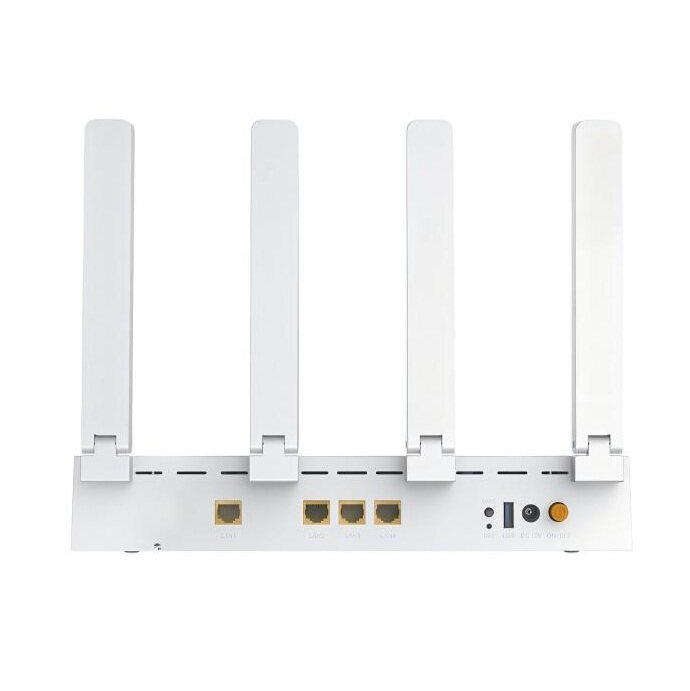

XPON HGU ONT 4GE+USB+WiFi6 1500Mbps
LG-ONT-XPON-4GE-AC615
Product Overview
XPON HGU ONT: support EPON/GPON dual mode, 1GE(WAN/LAN1), 3*GE(LAN), 1* USB 3.0, AC Wi-Fi 6.
Product Information
Product Details
The XPON ONT is a broadband access device designed to meet the demands of fixed network operators for FTTH. It is based on a high-performance chip solution, supporting XPON dual-mode technology (EPON and GPON). With WiFi speeds of up to 1500Mbps, it also supports IEEE 802.11b/g/n/ac/ax Wi-Fi 6 technology and other Layer 2, Layer 3 features, providing data services for carrier-grade FTTH applications. It comes in two color options for its body shell, black and white. With a bottom disc fiber structure design, it can be placed on a desktop or wall-mounted, adapting effortlessly to various scene styles.
Specification
Model | LG-ONT-XPON-4GE-AC615 |
PON interface | 1 XPON port (EPON PX20+, GPON Class B+) Single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload power: -3dBm (EPON), -8dBm (GPON) Transmission distance: 20KM Wave: TX 1310nm, RX1490nm |
User interface | 1*GE(WAN/LAN), 3*GE(LAN), auto-negotiation, RJ45 connectors 1* USB 3.0 |
XPON mode | Dual mode, auto-access to EPON/GPON OLT |
Connection mode | Router mode |
Antenna | 4 ×5dBi external antennas |
Power supply | DC 12V, 1.5A, external AC-DC power adaptor |
Power consumption | ≤18W |
Indicator | PWR, LOS, PON, WAN, LAN1～4, 2.4G, 5G, USB, WPS |
Dimension | 260mm×157mm×46mm(L×W× H) |
Weight | 0.45KG |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XPON-4GE-AC615 | XPON HGU ONT 4GE+USB+WiFi6 1500Mbps | In Stock |
