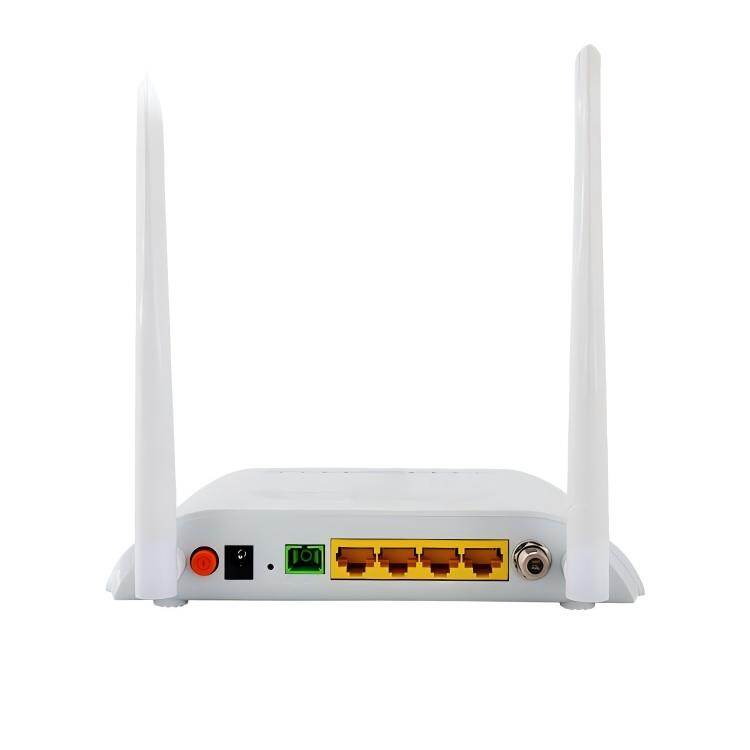

XPON ONT 1GE+3FE+CATV+WiFi4
LG-ONT-XPON-1G3FTW
Product Overview
XPON ONT: support EPON/GPON dual mode, 1GE(WAN/LAN1), 3*FE(LAN), 1* CATV RF, Wi-Fi 4.
Product Information
Product Details
The XPON ONT is a broadband access device specially designed to meet the needs of telecom operators for FTTO, FTTD, FTTH, SOHO access, and video surveillance access. The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802. 11b/g/n Wi-Fi 4 technology and other Layer 2, Layer 3 functions, providing data service for carrier-grade FTTH applications.
Specification
Model | LG-ONT-XPON-1G3FTW |
PON interface | 1 XPON port (EPON PX20+, GPON Class B+) Single mode, SC/APC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload power: -3dBm (EPON), -8dBm (GPON) Transmission distance: 20KM Max rate: down 2.488Gb/s, up 1.248Gb/s Wave: TX 1310nm, RX1490nm, CATV 1550nm |
User interface | 1*GE(WAN/LAN) + 3*FE (LAN), Auto-negotiation RJ45 connector (LAN1 GE supports WAN mode) 1* CATV F connector |
XPON mode | Dual mode, auto-access to EPON/GPON OLT |
Connection mode | Bridge and router mode |
Power supply | DC 12V, 1A, external AC-DC power adaptor |
Power consumption | ≤7W |
Indicator | PWR, LOS, REG, LAN1~LAN4, CATV, WIFI, WAN |
Dimension | 185mm×120mm×34mm(L×W× H) |
Weight | 0.3KG |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XPON-1G3FTW | XPON ONT 1GE+3FE+CATV+WiFi4 | In Stock |
