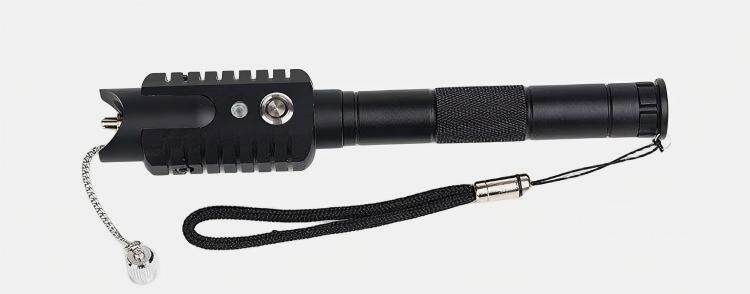

VFL 650nm Visual Fault Locator for 5km~50km
LG-VFL-301-50
Product Overview
The LG-VFL-301 series VFL support output power of 10mW, 20mW, 30mW, 40mW and 50mW. It offers multiple advantages including long service life, robust construction and portability.
Product Information
Product Details
Specification
Central wavelength | 650nm±10nm |
Emitter type | FP-LD |
Output power | 10mW, 20mW, 30mW, 40mW, 50mW |
Laser Range | 5km~50km |
Optical connector | 2.5mm universal connector |
Operating model | Both CW and Pulse available |
Pulse frequency | 3Hz~9Hz |
Power supply | 2pcs 5th Alkaline batteries |
Operating temp | -20°C to 60°C |
Storage temp | -40°C to 85°C |
Dimension | 2.5cm x 19cm |
Weight | 106g (without battery) |
Ordering Information
Model | Description |
LG-VFL-301-10 | Visual Fault Locator, 10km |
LG-VFL-301-20 | Visual Fault Locator, 20km |
LG-VFL-301-30 | Visual Fault Locator, 30km |
LG-VFL-301-40 | Visual Fault Locator, 40km |
LG-VFL-301-50 | Visual Fault Locator, 50km |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-VFL-301-50 | VFL 650nm Visual Fault Locator for 5km~50km | In Stock |
