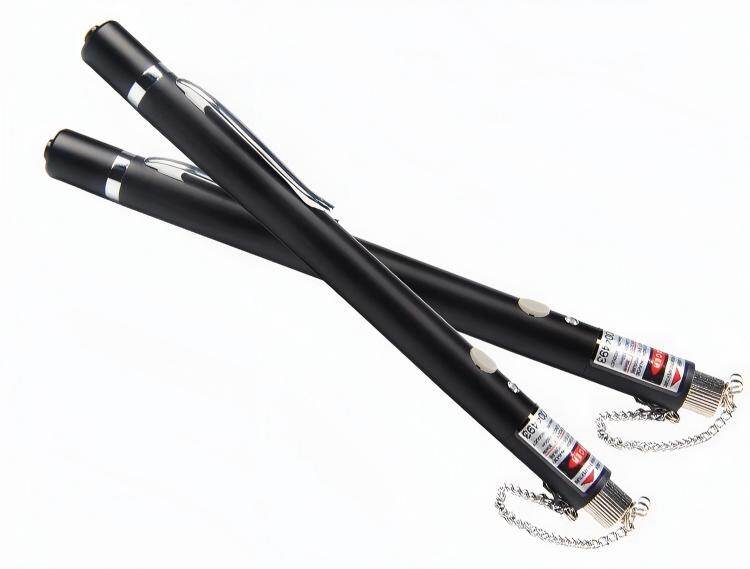

Pen Type VFL 650nm Visual Fault Locator for 5km~20km
LG-VFL-101-10
Product Overview
The LG-VFL-101 series VFL support output power of 1mW, 5mW, 10mW and 20mW. It offers multiple advantages including long service life, robust construction and portability.
Product Information
Product Details
Feature
Equipped with a high-quality triangular laser chip offering a lifespan of 8,000~12,000 hours.
APC circuit board, constant power output, and anti-reverse installation protection.
Three operating modes: continuous illumination, flash (9Hz), and slow flash (3Hz).
Low battery warning.
Drop-resistant and dust-proof design of laser head.
Laser case ground design prevents ESD damage.
Constructed with a copper housing, pen-style design with clip attachment, easy to carry.
Specification
Central wavelength | 650nm±10nm |
Emitter type | FP-LD |
Output power | 5mW, 10mW, 20mW |
Laser Range | 5km~20km |
Optical connector | 2.5mm universal connector |
Operating model | Both CW and Pulse available |
Pulse frequency | 3Hz~9Hz |
Power supply | 2pcs 7th alkaline battery |
Operating temp | -20°C to 60°C |
Storage temp | -40°C to 85°C |
Dimension | 1.6cm x 17.6cm |
Weight | 50g (with battery) |
Ordering Information
Model | Description |
LG-VFL-101-05 | Visual Fault Locator, 5km |
LG-VFL-101-10 | Visual Fault Locator, 10km |
LG-VFL-101-20 | Visual Fault Locator, 20km |
