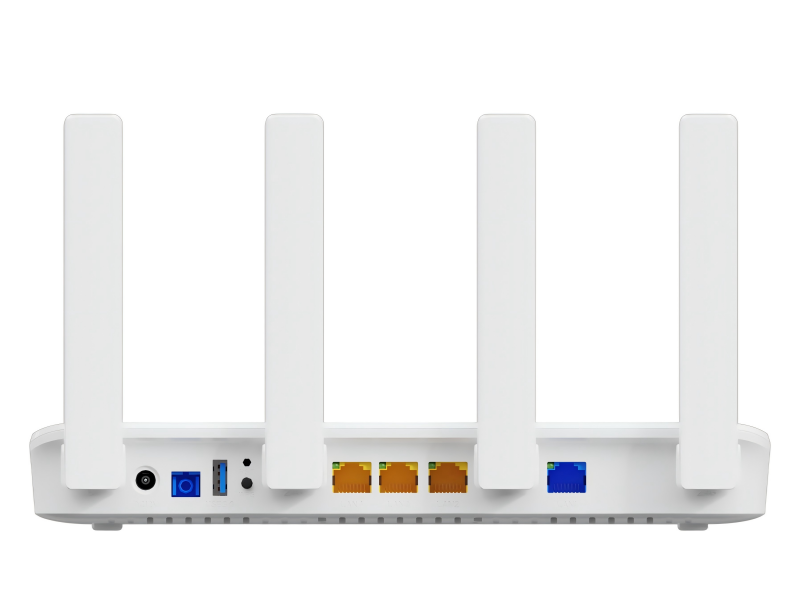

10G PON HGU ONT 1*2.5GE+3*GE+USB+Wi-Fi6 3000Mbps
LG-ONT-XGPON-4GE-AC630
Product Overview
10G PON ONT supports XG-PON, XGS-PON or 10G EPON specifications, Bridging and routing mode.
Product Information
Product Details
The 10G PON HGU ONT supports the full of services enabling Data and Video services through Ethernet, Wi-Fi and USB standard interfaces, help Internet Service Providers to deliver internet service more than 2.5Gbps which is limited by GPON. ONT built-in Ethernet LAN ports, one 2.5GE BASE-T port and 3x1GE BASE-T ports support ultrafast device connection, and includes powerful and enhanced WLAN interface based on MU-MIMO OFDMA 2x2 2.4GHz MIMO and 5Ghz 2x2 MIMO Wi-Fi antennas supporting 802.11a/b/g/n/ac/ax standards over 2.4GHz and 5GHz wireless frequency bands for Internet application such as video, email, web surfing, files upload/download and online gaming.
Specification
Model | LG-ONT-XGPON-4GE-AC630 LG-ONT-XGSPON-4GE-AC630 LG-ONT-10GEPON-4GE-AC630 |
PON interface | 10G PON port: Class B+, SMF, SC/UPC connector TX power: 6dBm (XGS-PON), 5dBm(XG-PON), 4dBm(10G EPON) RX sensitivity: -28dBm Overload optical power: -8dBm Transmission distance: 20km Wave: XG(S)-PON down 1577nm, up 1270nm 10G-EPON down 1577nm, up 1310nm |
User interface | 3*1.25GE, auto-negotiation RJ45 connectors 1*2.5GE, auto-negotiation RJ45 connectors 1* USB 3.0 |
Connection mode | Bridging, routing mode |
10G PON layer | IEEE 802.3av (10G-EPON) ITU-T G.987 (XG-PON) ITU-T G.9807.1 (XGS-PON) |
Power supply | DC 12V, 2A, external AC-DC power adaptor |
Power consumption | ≤24W |
Indicator | LOS, PON, WAN, USB, WIFI |
Dimension | 244mm×131mm×36mm(L×W× H) |
Weight | 0.43KG |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XGPON-4GE-AC630 | 10G PON HGU ONT 1*2.5GE+3*GE+USB+Wi-Fi6 3000Mbps | In Stock |
