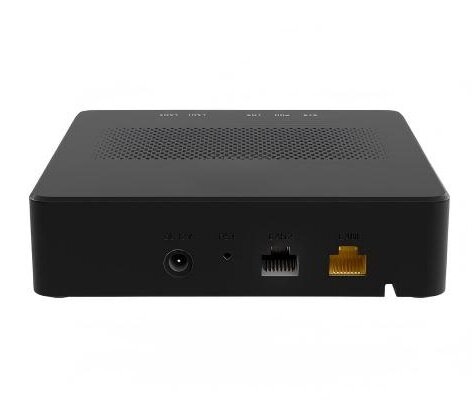

XG(S)-PON ONT 1*10GE + 1*GE
LG-ONT-XGPON-2GE
Product Overview
ONT has one 10GE and one GE Ethernet port, and supports XG-PON or XGS-PON specifications, support bridging and routing mode.
Product Information
Product Details
The ONT has one 10GE and one GE Ethernet port, and supports XG-PON/XGS-PON specifications. It is specially designed to meet the needs of telecom operators for FTTO, FTTD, FTTH, SOHO broadband access, etc. This ONU effortlessly supports 4K/8K, VR, and other demanding applications, providing home and business users with the ultimate 10G ultra-high-speed internet connectivity experience. With tray-mounted fiber structure fiber design, it can be placed on a desktop or wall-mounted, adapting effortlessly to various scene styles.
Specification
Model | LG-ONT-XGPON-2GE LG-ONT-XGSPON-2GE |
PON interface | Single mode, SC/UPC connector TX power: 6dBm (XGS-PON) , 5dBm(XG-PON) RX sensitivity: -28dBm Overload optical power: -8dBm Transmission distance: 20km Wave: XG(S)-PON down 1577nm, up 1270nm |
LAN interface | 1* 10GE, auto-negotiation, RJ45 connector 1*GE, auto-negotiation, RJ45 connector |
10G PON layer | ITU-T G.987 (XG-PON) ITU-T G.9807.1 (XGS-PON) |
Ethernet connection | Bridging and routing mode |
Power supply | DC 12V, 1A, external AC-DC power adaptor |
Power consumption | ≤12W |
Indicator | SYS, PON, LOS, LAN1, LAN2 |
Dimension | 140mm×140mm×37mm(L×W× H) |
Weight | 320g |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XGPON-2GE | XG(S)-PON ONT 1*10GE + 1*GE | In Stock |
