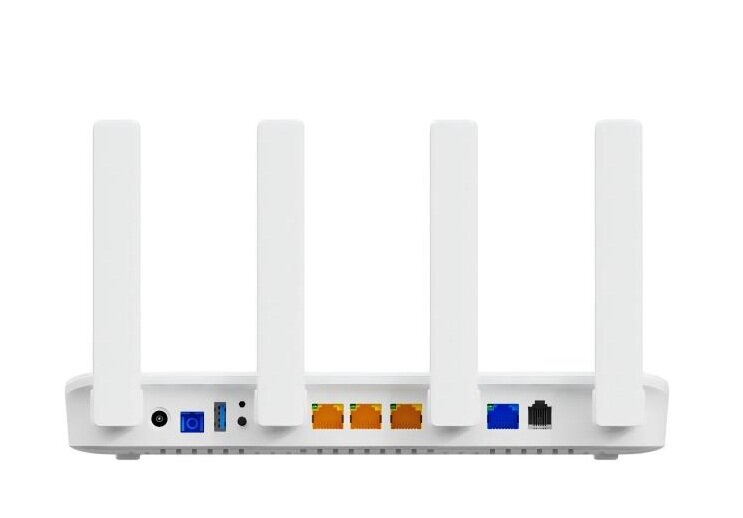

10G PON ONT 1*2.5GE +3*GE+1*POTS+USB+WIFI6 3000Mbps
LG-ONT-XGSPON-4G1P-AC630
Product Overview
10G PON ONT supports 10G-EPON, XG-PON and XGS-PON specifications, Bridging and routing mode.
Product Information
Product Details
The10G PON HGU ONT supports the full Triple Play of services enabling Data, Voice and Video services through Ethernet, Wi-Fi, FXS and USB standard interfaces, help Internet Service Providers to deliver internet service more than 2.5Gbps which is limited by GPON. ONT built-in Ethernet LAN ports, one 2.5GE BASE-T port and 3x1GE BASE-T ports support ultrafast device connection, and includes powerful and enhanced WLAN interface based on MU-MIMO OFDMA 2x2 2.4GHz MIMO and 5Ghz 2x2 MIMO Wi-Fi antennas supporting 802.11a/b/g/n/ac/ax standards over 2.4GHz and 5GHz wireless frequency bands for Internet application such as video, email, web surfing, files upload/download and online game, and it provides VoIP service through POTS port.
Specification
Model | LG-ONT-XGPON-4G1P-AC630 LG-ONT-XGSPON-4G1P-AC630 LG-ONT-10GEPON-4G1P-AC630 |
PON interface | 10G PON port: Class B+ SMF, SC/UPC connector TX power: 6dBm (XGS-PON), 5dBm(XG-PON), 4dBm(10G EPON) RX sensitivity: -28dBm Overload optical power: -8dBm Transmission distance: 20km Wave: XG(S)-PON down 1577nm, up 1270nm 10G-EPON down 1577nm, up 1310nm |
User interface | 3*1.25GE, auto-negotiation RJ45 connectors 1*2.5GE, auto-negotiation RJ45 connectors 1* USB 3.0 1* POTS RJ11 connector |
Connection mode | Bridging, routing mode |
Power supply | DC 12V, 2A, external AC-DC power adaptor |
Power consumption | ≤24W |
Indicator | LOS, PON, WAN, USB, WIFI, FXS |
Dimension | 244mm×131mm×36mm(L×W× H) |
Weight | 0.43KG |
Environment | Operating temp: -10℃ ~ +55℃ Storing temp: -40 ℃~ +70℃ RH: 5% ~ 95% (non-condensing) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-ONT-XGSPON-4G1P-AC630 | 10G PON ONT 1*2.5GE +3*GE+1*POTS+USB+WIFI6 3000Mbps | In Stock |
