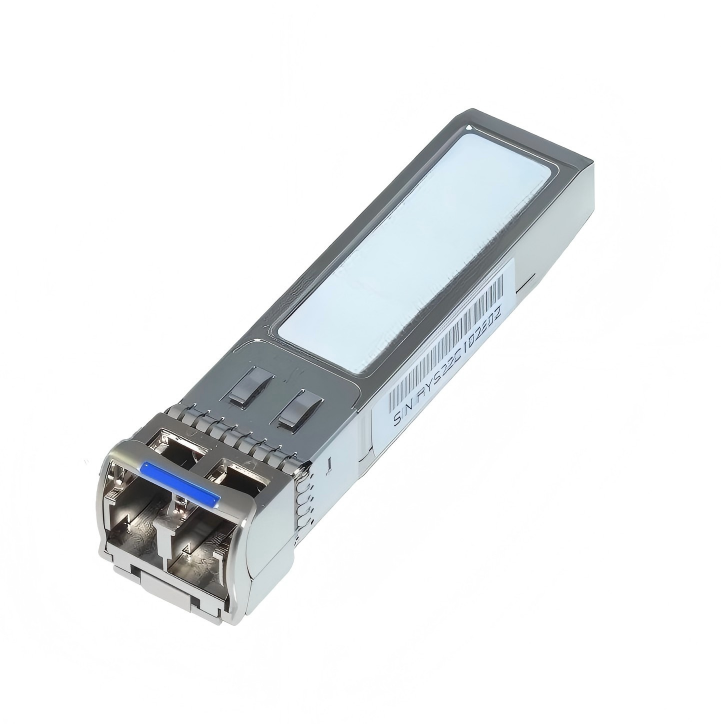

10G SFP+ LR Transceiver SMF 1310nm 10km
LG-SFP-10G-SM13-LDC-10
Product Overview
10G SFP+ LR Module, SMF 1310nm,10km, duplex LC connector, with DDM/DOM, 0~+70℃
Product Information
Product Details
Feature
1310nm DFB laser transmitter and PIN photodiode.
Up to 10km transmission distance over 9/125µm OS2 SM fiber.
Supporting Digital Diagnostic Monitoring（DDM).
Hot-pluggable SFP+ MSA.
NRZ modulation.
Satisfy Class 1 FDA Laser Safety and RoHS ( lead free).
Metal enclosure, for lower EMI.
Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.
Specification
Model | LG-SFP-10G-SM13-LDC-10 | LG-SFP-10G-SM13-LDI-10 (Industrial) |
Data rate | 10Gbps | 10Gbps |
Wavelength | 1310nm | 1310nm |
Fiber mode type | Single mode | Single mode |
Max transfer distance | 10km | 10km |
Connector type | Duplex LC | Duplex LC |
TX power | -8.2~0.5dBm | -8.2~0.5dBm |
RX sensitivity | <-14.4dBm | <-14.4dBm |
RX overload | 0.5dBm | 0.5dBm |
Power supply | +3.3V | +3.3V |
Power budget | 6.2dB | 6.2dB |
Extinction ratio | >3.5dB | >3.5dB |
Max power dissipation | 1W | 1W |
Operating Temp | 0~+70℃ | -40~+85℃ |
Protocol | SFP+ MSA IEEE 802.3ae SFF-8472 SFF-8431 SFF-8432 | SFP+ MSA IEEE 802.3ae SFF-8472 SFF-8431 SFF-8432 |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-SFP-10G-SM13-LDC-10 | 10G SFP+ LR Transceiver SMF 1310nm 10km | In Stock |
