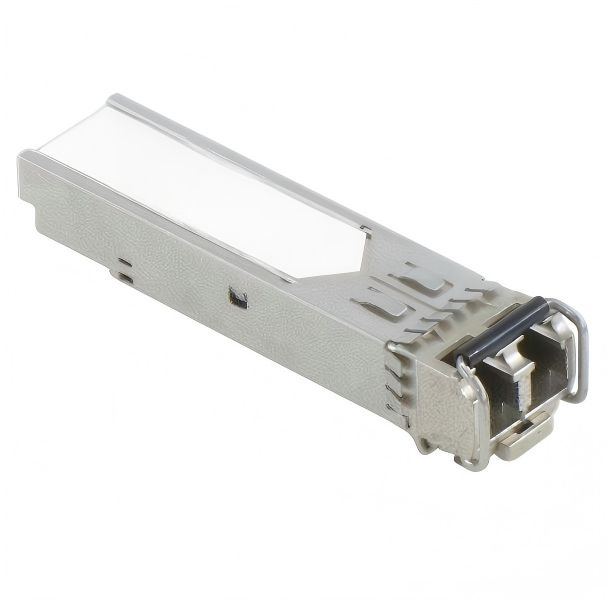

1.25G Optical Module SFP Transceiver MM 850nm

Feature

• Dual data-rate of Gigabit Ethernet 1.25Gbps  and Fiber Channel 1.063Gbps operation.

• Up to 550 meters transmission distance with multi mode fiber.

• 850nm VCSEL laser transmitter and PIN photodiode.

• Duplex LC connector.

• With Digital Diagnostic Monitoring（DDM)

• +3.3V single power supply

• Satisfy class  I  laser  safety requirements

• Compliant with SFP MSA and SFF-8472

• Compatible with RoHS

• Metal enclosure, for lower EMI

• Compatible with HUAWEI, CISCO, ZTE, H3C, HP etc.

Application

• Gigabit Ethernet

• Fiber Channel

• Switch to Switch interface

• Switched backplane applications

• Router/Server interface

• Other optical transmission systems

  Specification

  Model	LG-SFP-GE-MM85-LDC-0.5	LG-SFP-GE-MM85-LDI-0.5 (Industrial)
  Data Rate	1.25Gbps	1.25Gbps
  Wavelength	850nm	850nm
  Fiber Mode Type	Multi mode	Multi mode
  Max Transfer Distance	550m	550m
  Connector Type	LC	LC
  Laser Type	VCSEL	VCSEL
  TX Power	-9.5~-3dBm	-9.5~-3dBm
  RX Sensitivity	<-17dBm	<-17dBm
  Power Supply	+3.3V	+3.3V
  Max power dissipation	0.8W	0.8W
  Operating Temp	0~+70℃	-40~+85℃
