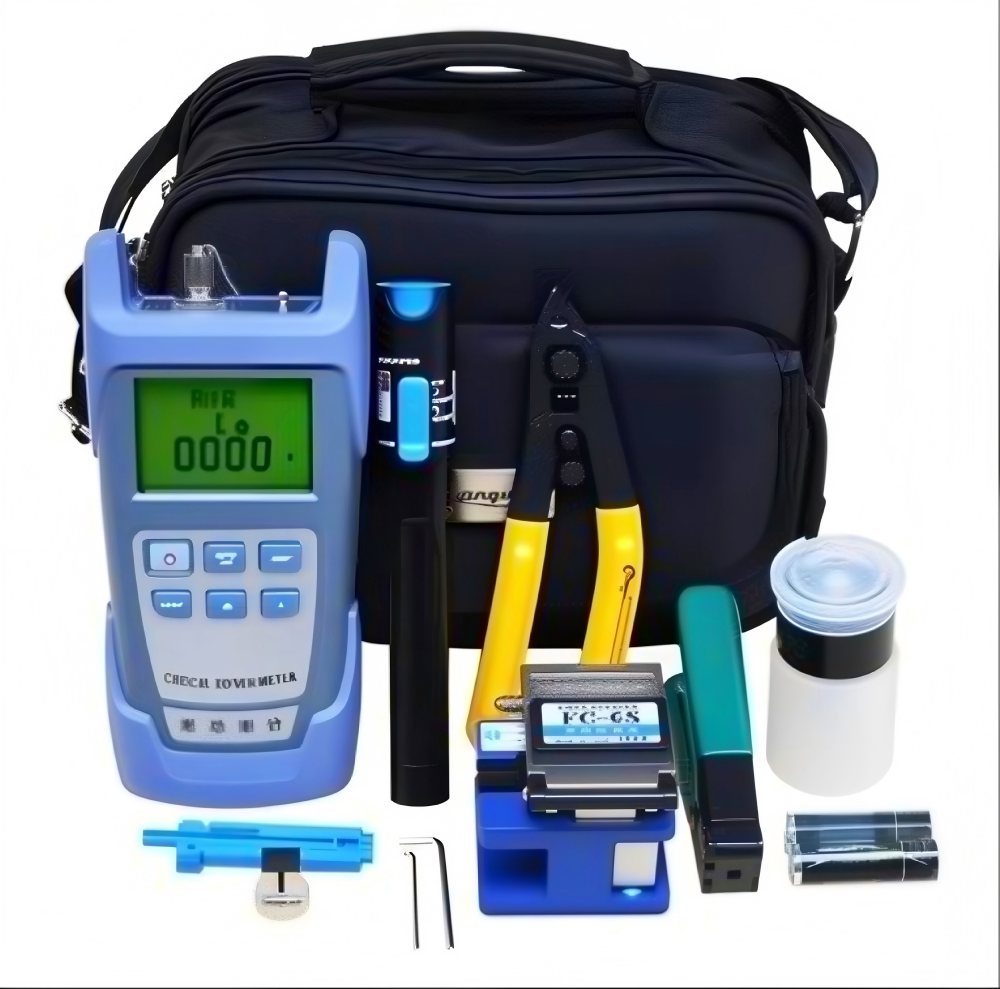

Fiber Optic Tool Kit
LG-FTK-A
Product Overview
1*Carry Bag, 1*Optic Power Meter, 1*Miller Clamp, 1*Pen Visual Fault Locator, 1*Fiber Optic Cleaver, 1*Fiber Stripper Plier, 1*Alcohol Bump Bottle, 1*Fiber Cutting Tool, 2*"L" Tool.
Product Information
Product Details
Application
Use with Pre-Polished Fiber Optic Connectors
Cut down on overall fiber installation cost by reducing termination time
Field assembly, No polishing required
Fast and easy to terminate
Compact waterproof protection bag
Encourages safe handling of fiber off-cuts
Specification
Power Meter | Measurement Range: -70~+10dBm Comfortable LCD display and optional backlight LCD display supports night operation. Power measurements in dB or mw and insertion loss Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries Optional 10 minutes Auto-off function. |
Fiber cutter CFS-2 | The fiber stripper is used to peel 250um coating of 125um fiber. The 1.98mm open pore at the top uses to peel 0.9mm tube of fiber optic pigtail |
Fiber stripper | Applies to 2mm, 3mm indoor cable sheath peeling. The cutting depth can be adjusted, to ensure not to hurt the fiber. Light weight, small volume, easy to operate. |
Visual fault locator (VFL) | 650nm semiconductor laser, Output Power: 10mW Measuring distance: 5km |
Fiber cleaver FC-6S | cutting 0.9/0.25mm fiber Application up to 12-fiber cleaving 36000 fibers blade life (3 height *12 positions) Has superior blade height and rotational adjustment, can be operated with minimal steps. |
Fixed length device | Peel the fiber sheath first. Unfold the guide bar and put the stripped naked fiber into the slot of the stripper. The guide bar is closed, and the finger is pressed slightly to guide the blade position of the guide bar to pull out the naked fiber, and then the coating layer is stripped. When the guide bar is used, the stripping device is required to be flat and unfolded, and the stripped naked fiber is put into the guide bar, and then they are put into the cutter to cut. |
Alcohol Bump Bottle | Precision design Eliminate volatilization |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-FTK-A | Fiber Optic Tool Kit | In Stock |
