Splice Protector Heat Shrink Splicing sleeve
Heat Shrink sleeve
Product Overview

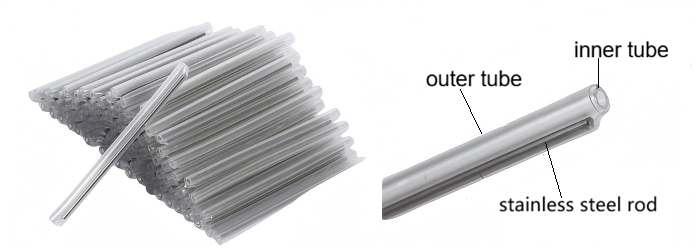

Structures: outer shrink tube, stainless steel rod and inner tube Protection sleeves length: 40mm, 45mm , 50mm , 55mm , 60mm (optional) Steel needle diameter: 0.5mm, 0.8mm, 1.0mm,1.2mm, 1.3mm, 1.5mm (optional)
Product Information
Product Details
Specification
Outer Tube | Polyolefin |
Working Temperature | -45° C to 100° C |
Ultimate Strength | 220 kg/cm3 |
Elongation | 650% |
Specific Gravity | 95° C (203° F) |
Water Absorption | 0.05% |
Minimum Shrink Temp | 95° C (203° F) |
Fungus Resistance | Inert |
Solvent Resistance | Good |
Acid Resistance | Excellent |
Inner Tube | Polyolefin Copolymer (Ethylene-Vinyl Acetate) |
Ultimate Strength | 200kg/cm3 |
Elongation | 700% |
Melting Point | 80° C (176° F) |
Specific Gravity | 0.93 |
Strength Member | 302 Stainless Steel with rounded and polished ends |
Shrink Time* Standard | 90 seconds |
Shrink Size Standard: | 2.9 mm |
Slim: | 2.5 mm |
Ribbon: | 4.3-5.1 mm |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| Heat Shrink sleeve | Splice Protector Heat Shrink Splicing sleeve | In Stock |
