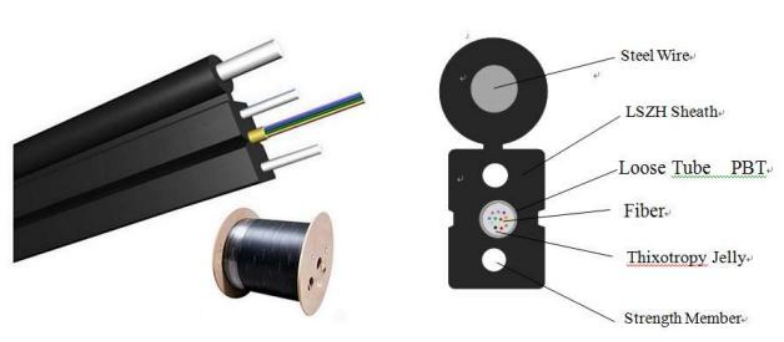

Outdoor Self-Supporting Drop Cable
LG-GJYXCH
Product Overview
1~12 Cores Outdoor FTTH Flat Drop Cable
Product Information
Product Details
Items | Specifications | |
Fiber Count | 1, 2, 4, 8, 12 cores | |
Fiber Type | single mode: G.652D, G657A1, G.657A2 | |
Cable Diameter | 2.0*5.0 mm; 2.0*6.0 mm | |
Colored Coating Fiber | Dimension Color | 250μm±15μm Blue, Orange etc |
Loose Tube | Material Outer Diameter Filling Color | PBT 2.0±0.1mm Thixotropy Jelly Natural |
Strength Member | Material Dimension | FRP 2x0.45mm |
Self-Supporting Member | Dimension Material | 1.0mm Steel Wire |
Outer Jacket | Dimension Material Color | 5.2±0.2mm LSZH Black |
Fiber Attenuation coefficient in Cable | dB/km(1310nm) dB/km(1550nm) | ≤0.35dB/km ≤0.21dB/km |
Tension | Short Term Long Term | 600N 300N |
Crush Resistance Strength (N/100mm) | Short Term Long Term | 2200N 1000N |
Min. Bending Radius (mm) | Dynamic Static | 20D 10D |
Temperature | Installation Operation Storage | -20～＋60℃ -40～＋70℃ -40～＋70℃ |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-GJYXCH | Outdoor Self-Supporting Drop Cable | In Stock |
