OPGW Optical Cable
LG-OPGW-48
Product Overview

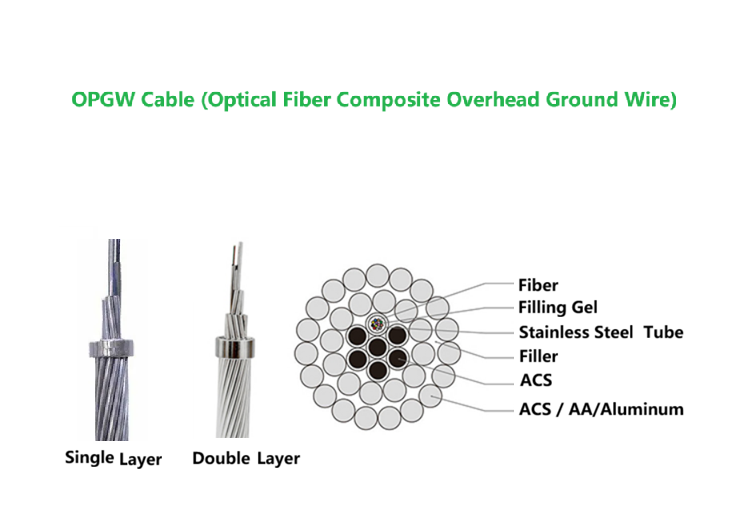

OPGW Cable (Optical Ground Wire，Optical Fiber Composite Overhead Ground Wire)
Product Information
Product Details
Specification
Structural Parameter | ||
Fiber unit
| Fiber cores | 2F～144F (optional) |
Fiber type | SM: G.652, G.655 (optional) | |
Diameter | 125μm | |
Protective tube | Material | Stainless steel |
Diameter | 1.5~6mm | |
Stranded single wire | Material | Aluminum clad steel (ACS) Aluminum alloy (AA) Aluminum rod |
Diameter | 1.5~6mm | |
Cable | Outer diameter | ≤30mm |
Cross-sectional area | ≤500mm² | |
Span length | ≤800m @ single twisted wire layer | |
No. of wire layer | 1, 2, or 3 | |
Weight (KG/KM) | N/A | |
Mechanical Parameters | ||
Short circuit current capacity | ≤2000kA²s | |
Coefficient of linear expansion (/℃) | N/A | |
DC resistance (Ω/km, 20℃) | N/A | |
Cable RTS (KN) | ≤700kN | |
Modulus of elasticity (GPa) | N/A | |
Min Bending Radius | Dynamic ≥20D; Static ≥15D | |
Crush Resistance Strength | Short term 1000N Long term 300N | |
Environmental Performance | Installation temp: -10℃~+50℃ Operating temp: -40℃ ~ +65℃ Storage temp: -40℃ ~ +65℃ | |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OPGW-48 | OPGW Optical Cable | In Stock |
