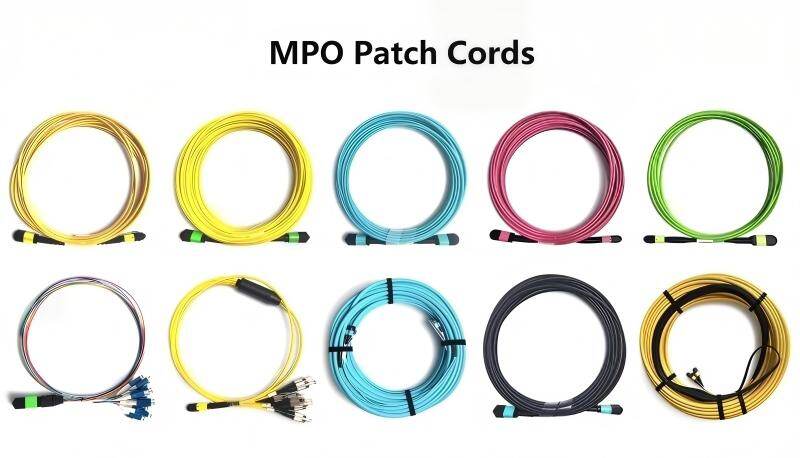

MPO MTP Fiber Optic Patch Cord
LG-OPC-MPO-12
Product Overview
8F 12F 16F 24F 32F MPO patch cords, single mode and multi-mode.
Product Information
Model: LG-OPC-MPO-12
Status: In Stock
Product Details
Specification
Fiber core | 8, 12, 16, 24, 32, etc (option) |
Fiber Mode | Single mode (SM): 9/125um Multi mode (MM): 62.5/125um, 50/125um |
Fiber standard | SM：G652D、G657A1、G657A2 (option) MM：OM1、OM2、OM3、OM4、OM5 (option) |
Connector type | MPO (Female/Male, UPC/APC) (option) SC/FC/LC/ST (UPC/APC) (option) Fiber position (Type A, Type B, Type C) (option) |
Fiber length | 1m, 3m, 5m,10m, 20m, 100m, etc (option) |
Sheath OD | 0.9mm, 2.0mm, 3.0mm, 5.0mm, etc (option) |
Sheath material | PVC, LSZH, OFNP, etc (option) |
Insertion loss | Standard loss, low loss (option) |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| LG-OPC-MPO-12 | MPO MTP Fiber Optic Patch Cord | In Stock |
Quality Assurance
ISO/FCC Dual Certified
Fast Delivery
1-10 days lead time
Need Bulk Purchase?
Contact us for better bulk purchase prices and customization services
Contact Us
