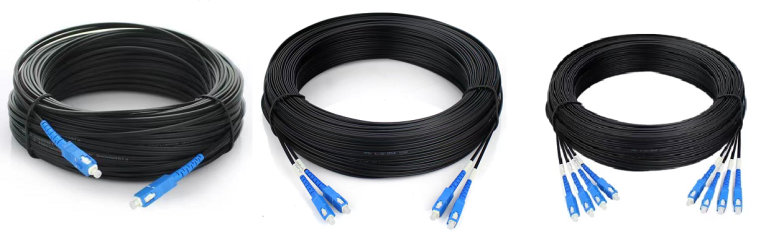

FTTH Outdoor Drop Patch Cords
drop cable patch cord
Product Overview
The fiber optic drop cable patch cord has connectors in each end of the cable to make connection
Product Information
Product Details
Connector Types End A | LC, SC, ST, FC, MTRJ, MU etc |
Connector Types End B | LC, SC, ST, FC, MTRJ, MU etc |
Polish Type | UPC, APC |
Connector Ferrule | Zirconia Ceramic |
Fiber Count | 1, 2, 4, 8, 12 cores |
Fiber Type | SMF: G.652, G.653, G.655, G.657 (OS2) |
Fiber Diameter (um) | SMF: 9/125um MMF: 50/125um, 62.5/125um |
Cable Diameter | 2.0*3.0mm, 2.0*5.0mm or Specify |
Cable Jacket | LSZH (standard) PVC, OFNR, OFNP etc (option) |
Jacket Color | Black |
Interchangeability | ≤0.2dB |
Vibration | ≤0.2dB |
Insertion Loss | ≤0.2dB(typical) ≤0.3dB(max) |
Return Loss | UPC≥50dB; APC≥60dB |
Attenuation at 1310nm | 0.35dB/km |
Attenuation at 1550nm | 0.22dB/km |
Attenuation at 850nm | 3.0dB/km |
Attenuation at 1300nm | 1.0dB/km |
Anti-tensile Force | 70N |
Working temperature | -40 to + 80℃ |
Cable Length (meter) | 1m, 3m, 5m, 10m, 20m, 30m, 50m, 100m etc |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| drop cable patch cord | FTTH Outdoor Drop Patch Cords | In Stock |
