Fiber Optic Adapter
Product Overview
A wide variety of fiber optic adapters to choose from
Product Information
Product Details
Features
Complying with the NSL, Bellcore, TIA/EIA,IEC standard
With high precise dimension
Ceramic or bronze house
Low insertion(<0.2dB),high return loss(≥50dB)
Changeability is more than one thousand, repeatability is less than 0.2dB
Application
Patch panels
Distribution frames
Maintenance or emergency restoration of fiber networks
FTTH Outlets
Connection at the desk for LAN environments
Specification
Fiber Mode | Single mode (SM): 9/125um Multi mode (MM): 62.5/125um, 50/125um |
Operating Wavelength | Single mode (SM): 1310nm, 1550nm Multi mode (MM): 1300nm, 850nm |
Interface channel | Simplex, Duplex, MPO (option) |

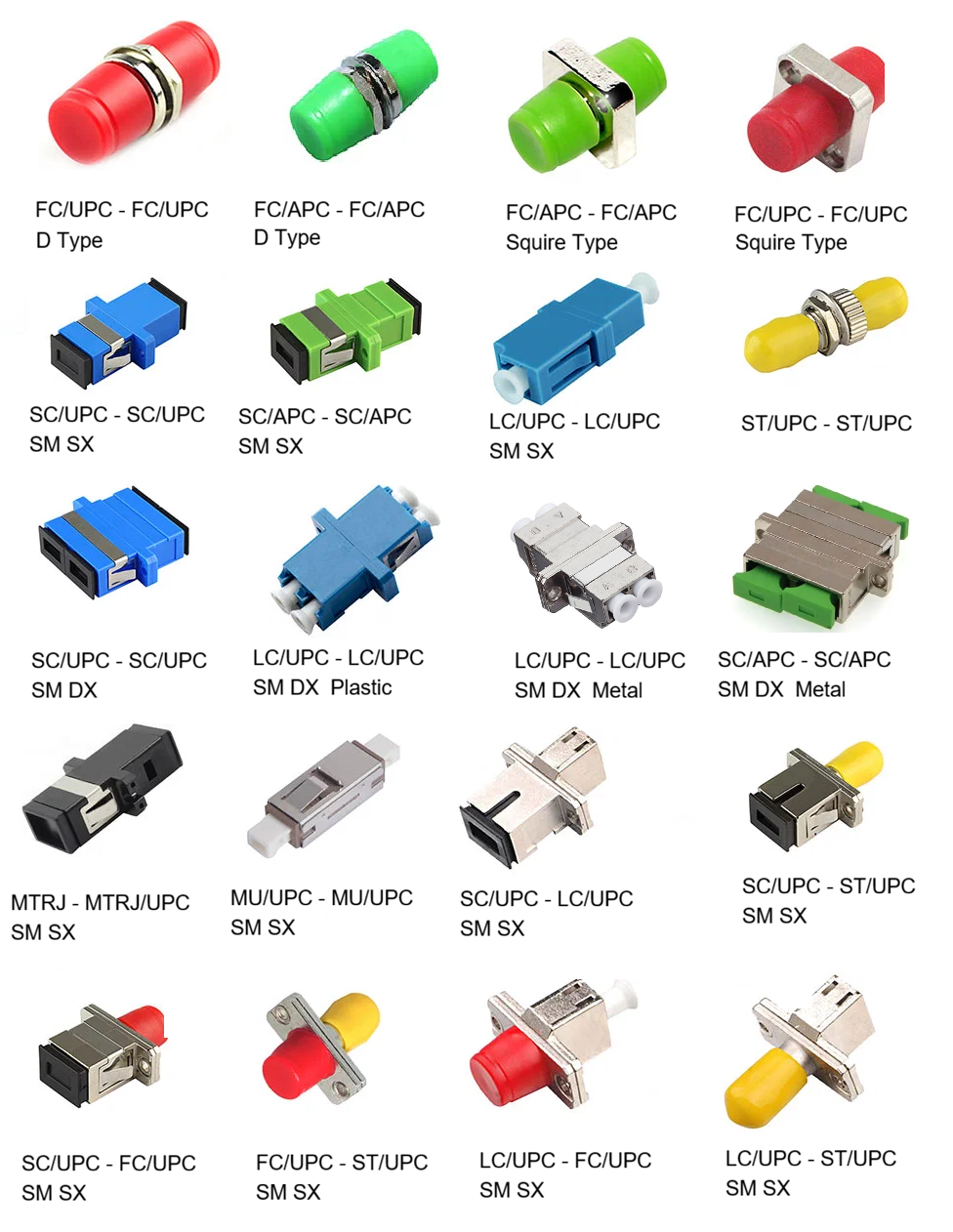

Connector Style | SC, FC, ST, LC, MTRJ, MPO, E2000, MU etc (option) |
Polish Type | PC, UPC, APC (option) |
Material | Metal, Plastic (option) |
Insertion Loss | ≤0.3dB |
Return Loss | UPC: >50dB APC: >60dB |
Operating Temperature | -20C to +70C |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| Fiber Optic Adapter | In Stock |
