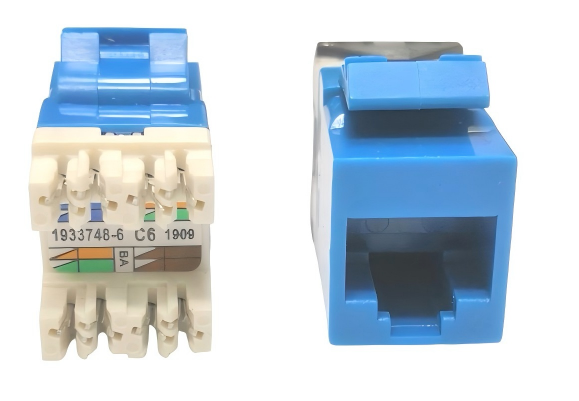

CAT6 Jack Connector
CAT6 Jack
Product Overview
Used for comprehensive cabling in network engineering
Product Information
Product Details
Suitable for connecting communication sockets between devices and work areas to achieve signal transmission, meeting the EIA/TIA 568A/B transmission standard.
The IDC end is marked with color codes for quick and accurate wiring
Equipped with a dust cover to protect the module, shield dust and dirt from entering
Eight core needle: phosphor bronze gold plating: 3-5 μm
Contact resistance: Contact resistance ≤ 2.5MΩ under normal atmospheric pressure conditions
Insulation resistance: Insulation resistance ≥ 1000MΩ under normal atmospheric pressure conditions
High voltage resistance: AV 750V for 1 minute without breakdown or arcing phenomenon
Plastic raw material: PC
Terminal raw material: phosphor bronze plated with nickel, can connect wires with a diameter of 22-26AWG, and can be repeatedly clamped at least 1000 times
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| CAT6 Jack | CAT6 Jack Connector | In Stock |
