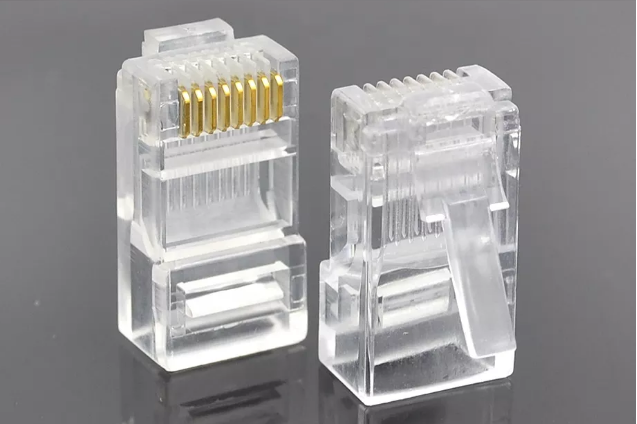

CAT5E UTP RJ45 Modular Plug
Product Overview
This RJ45 connector fits 24 to 26 AWG, and has 50 microns of gold plating on the contacts to establish a seamless connection.
Product Information
Product Details
Type of Cable | CAT5E UTP Modular Plug |
Max outer diameter | 22.34mm*11.67mm*8.00mm |
Contact blade material | 0.35mm phosphor bronze |
Finish | Gold plating after nickel plating (Electroplate) |
Gold plating thickness | 1U~50U (option) |
Nickel plating thickness | 80U |
Shell material | PC (polycarbonate) |
Shell fire rating | UL94, at least V2 |
Supported data rate | 1000 Mbps, 350 MHz |
Conductor Gauge | 24AWG |
Cable diameter | 5.30mm |
Contact resistance | 20mΩ Max. |
Insulation resistance | ≥1000MΩ (500V DC) |
Tensile strength | 20lbs (89n) |
Rated voltage | AC220V |
Rated current | 2.0A |
Working environment | Temperature range: -20~+70℃ |
Standard | YD/T577-1992 TIA-1096-A or TIA-968-A ISO ROHS CE |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| CAT5E UTP RJ45 Modular Plug | In Stock |
