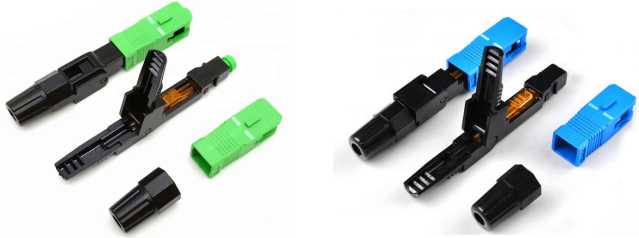

Fiber Optic SC Fast Connector
Product Overview
Field Assembly Connector (Pre-polished)
Product Information
Product Details
Features
Meet Telcordia gr-326-core standard.
Low insertion loss, high echo attenuation, high stability.
Good interchangeability.
Bayonet connection mode, high-density connection.
Ceramic core APC, UPC grinding.
Technical Parameter
Item | SC/APC, SC/UPC Fast Connector |
fiber type | SM single mode |
Applicable cable | 900μm, 2.0mm, 3.0mm, drop cable |
Insertion loss | Typical≤0.3dB, Max≤0.5dB |
Return loss | UPC: ≥40dB APC: ≥50dB |
Color | UPC: Blue APC: Green |
Operating temperature | -20°C ~+75°C |
Storage Temperature | -40°C ~+85°C |
Temperature cycling | IL change ≤0.3dB, RL change ≤5 dB |
Vibration | IL change ≤0.3dB, RL change ≤5 dB |
Low Temp Storage-40°C | IL change ≤0.3dB, RL change ≤5 dB |
Damp Heat,85°C,85%H | IL change ≤0.3dB, RL change ≤5 dB |
Tensile test online 20N | IL change ≤0.2dB, RL change ≤5 dB |
Mechanical durability 500times | IL change ≤0.2dB, RL change ≤5 dB |
Drop test 4m high 3times | IL change ≤0.2dB, RL change ≤5 dB |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| Fiber Optic SC Fast Connector | In Stock |
