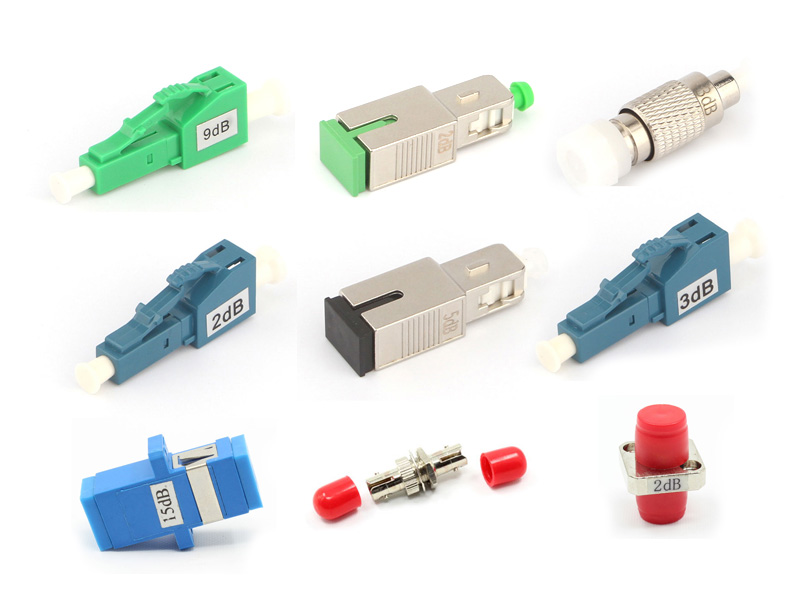

Fixed Fiber Optic Attenuator
Product Overview
fixed optical attenuator is a fiber optic component designed to reduce the intensity of an optical signal by a set amount.
Product Information
Product Details
Features
Low back reflection loss and Low PDL
High precision attenuation value
Precision control of attenuation range
Wide attenuation range
Precision ceramic ferrule
Attenuates Fiber Optic Signal
Application
Telecommunication system
Passive optical networks
Optical power receivers protection
Fiber optical sensor
Test equipment
Specification
Attenuation Value | 1～30 dB (1, 2, 3, 5, 7, 10, 15, 20, 25dB etc ) |
Connector Style | SC, FC, ST, LC, MU etc (option) |
Polish Type | PC, UPC, APC (option) |
Operating Wavelength | Single mode (SM): 1310nm, 1550nm Multi mode (MM): 1300nm, 850nm |
Maximum Optical Input Power | 200mW |
Insertion and extraction times | >500 times |
Polarization Dependent Loss （PDL） | <0.2dB |
Attenuating Precision | 0~2dB: ±0.5dB 3~7dB: ±0.75dB 8~30dB: ±10% |
Return Loss | UPC: >50dB APC: >60dB |
Operating Temperature | -20C to +70C |
Ordering Information
| Model | Name | Status | Action |
|---|---|---|---|
| Fixed Fiber Optic Attenuator | In Stock |
